SLEWING BEARING DH80-7 BEARING;SWING 109-00170A/K1008340 SOLAR75
  • name
  • name

SLEWING BEARING DH80-7 BEARING;SWING 109-00170A/K1008340 SOLAR75

Brand Name: TGFQ
Model Number: SOLAR75
MOQ: 1 pc
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GUANGZHOU,CHINA
Drive Type:
Hydraulic
Raceway Hardness:
55-62 HRC
Material:
50Mn / 42CrMo Alloy Steel
Net Weight:
95KGS
Supply Ability:
100PCS
Highlight:

Excavator slewing bearing DH80-7

,

Swing bearing 109-00170A

,

Solar75 excavator gear bearing

Product Description
SLEWING BEARING DH80-7 BEARING;SWING 109-00170A/K1008340 SOLAR75
This specialized excavator slewing bearing is a swing ring component designed for DH80-7 Solar 75 models. This rotary bearing system is engineered for heavy‑duty applications and is widely utilized in various excavator swing assemblies and turntable configurations.
Product Images

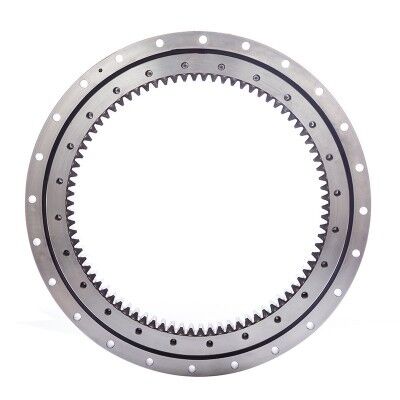

Excavator slewing bearing product photo Close-up view of slewing bearing components
Parts Breakdown
Slewing bearing parts breakdown diagram
Number Part Number Required Quantity Part Name
2 109-00170A [1] BEARING;SWING
2 K1008340 [1] BEARING;SWING
Product Overview
Our excavator slewing bearing (also named swing ring, turntable bearing) is a core rotary component for excavators. It supports 360° smooth rotation of upper-structure, bears axial load, radial load and overturning moment during heavy-duty digging work.
This is brand-new aftermarket replacement part, 1:1 interchangeable with original OEM unit. No modification needed during field installation. Wide model coverage, compatible with various excavator models of mainstream well-known brands worldwide. Custom-made service is available for special non-standard models.
Key Features
  • Adopt single-row four-point contact ball structure for excavator heavy-load working condition
  • Raw material: 50Mn / 42CrMo forged alloy steel; rolling body: GCr15 bearing steel ball
  • Raceway surface induction hardened, hardness 55-62 HRC, strong wear-resistance
  • External gear / internal gear optional, precise gear tooth processing
  • Multi-lip NBR rubber seal, effectively block dust, mud, water and debris
  • Strict 100-percent pre-shipment inspection: dimension check, gear tooth test, rotation smoothness test
  • Direct replacement, matches original mounting hole layout, dimension and gear parameters
Technical Parameters
Product Name Excavator Slewing Bearing / Swing Ring
Structure Single-row four-point contact ball
Material 50Mn / 42CrMo Alloy Steel
Rolling Element GCr15 Steel Ball
Raceway Hardness 55-62 HRC
Gear Type External Gear / Internal Gear
Seal NBR Multi-lip Rubber Seal
Model DH80-7 SOLAR75
Part Number 109-00170A/K1008340
Warranty 6-month warranty after shipment (Exclude improper installation, overload and bad lubrication)
Lead Time 7-15 working days after deposit received
Packing Export reinforced wooden crate
What We Need For Exact Quotation
Please provide any one of below information for accurate offer:
  • OEM part number
  • Excavator machine model
  • Full dimension data: Outer Diameter, Inner Diameter, Overall Height, Gear teeth quantity, mounting hole size
Our Service
  • Small order acceptable, 1 set for trial order
  • Support custom-made according to drawings or samples
  • Professional technical support for fitting and installation advice
  • Fast reply within working hours
