SLEWING BEARING E200B 1362903 136-2903 GEAR & BEARING GP
  • name
  • name

SLEWING BEARING E200B 1362903 136-2903 GEAR & BEARING GP

Brand Name: TGFQ
Model Number: E200B
MOQ: 1 pc
Price: 100.00USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GUANGZHOU,CHINA
Drive Type:
Hydraulic
Net Weight:
235KGS
Raceway Hardness:
55-62 HRC
Material:
50Mn / 42CrMo Alloy Steel
Supply Ability:
100PCS
Highlight:

Excavator slewing bearing E200B

,

Gear & bearing GP 1362903

,

Excavator gear with warranty

Product Description
SLEWING BEARING E200B 1362903 136-2903 GEAR & BEARING GP
This specialized excavator final drive is a travel gearbox component designed for E200B models. This hydraulic drive system is engineered for heavy-duty applications and is widely utilized in various excavator travel assemblies and gearbox configurations.

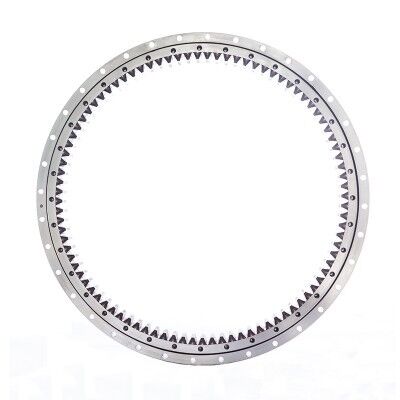

Product Images
Slewing bearing product view Slewing bearing detailed view
Parts Breakdown
Parts breakdown diagram for slewing bearing
Part Number Part Name Req'd Quantity
8T-4121 Washer-Hard 4 4
8T-4136 Bolt (L=25MM) 4 4
7Y-1647 Gasket 1 1
7Y-1648 Strip 1 1
096-6095 Plug 1 1
095-1608 Seal-O-Ring (ID=44.70MM) 1 1
5K-9243 Elbow 1 1
114-1355 Tube AS 1 1
095-1302 Dowel 1 1
Product Overview
Our excavator slewing bearing (also named swing ring, turntable bearing) is a core rotary component for excavators. It supports 360° smooth rotation of upper-structure, bears axial load, radial load and overturning moment during heavy-duty digging work.
This is brand-new aftermarket replacement part, 1:1 interchangeable with original OEM unit. No modification needed during field installation. Wide model coverage, compatible with various excavator models of mainstream well-known brands worldwide. Custom-made service is available for special non-standard models.
Key Features
  • Adopt single-row four-point contact ball structure for excavator heavy-load working condition
  • Raw material: 50Mn / 42CrMo forged alloy steel; rolling body: GCr15 bearing steel ball
  • Raceway surface induction hardened, hardness 55-62 HRC, strong wear-resistance
  • External gear / internal gear optional, precise gear tooth processing
  • Multi-lip NBR rubber seal, effectively block dust, mud, water and debris
  • Strict 100-percent pre-shipment inspection: dimension check, gear tooth test, rotation smoothness test
  • Direct replacement, matches original mounting hole layout, dimension and gear parameters
Technical Parameters
Product Name Excavator Slewing Bearing / Swing Ring
Structure Single-row four-point contact ball
Material 50Mn / 42CrMo Alloy Steel
Rolling Element GCr15 Steel Ball
Raceway Hardness 55-62 HRC
Gear Type External Gear / Internal Gear
Seal NBR Multi-lip Rubber Seal
Model E200B
Part Number 1362903 136-2903
Warranty 6-month warranty after shipment (Exclude improper installation, overload and bad lubrication)
Lead Time 7-15 working days after deposit received
Packing Export reinforced wooden crate
What We Need For Exact Quotation
Please provide any one of below information for accurate offer:
  • OEM part number
  • Excavator machine model
  • Full dimension data: Outer Diameter, Inner Diameter, Overall Height, Gear teeth quantity, mounting hole size
Our Service
  • Small order acceptable, 1 set for trial order
  • Support custom-made according to drawings or samples
  • Professional technical support for fitting and installation advice
  • Fast reply within working hours
