CX210C/SH210-5 Travel motor MAG170VP-3800 KRA1426/KRA1860/KRA10120/KRA15440

Brand Name:	TGFQ
Model Number:	MAG170VP-3800
MOQ:	1
Price:	675.00USD
Packaging Details:	NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Payment Terms:	L/C,T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Compatible Models:

CX210C/SH210-5

Part Numbers:

KRA1426/KRA1860/KRA10120/KRA15440

Swing Brake Type:

Multi-disc Plate Assembly

Motor Type:

Excavator Travel Motor

Reverse-Prevention Valve:

One-way Valve Design

Supply Ability:

10 pcs / month

Highlight:

CX210C excavator travel motor

SH210-5 hydraulic travel motor

KRA series excavator motor

Product Description

CX210C/SH210-5 Travel motor MAG170VP-3800 KRA1426/KRA1860/KRA10120/KRA15440

As a high-grade replacement spare part for heavy-duty excavators, this travel drive model is professionally optimized and precisely calibrated to perfectly fit the CX210C/SH210-5 specification models. Differing from conventional standard hydraulic motor assemblies, this unit adopts upgraded hydraulic transmission technology and integral reinforced structural craftsmanship. It is purpose-built for rigorous heavy-load construction conditions, effectively delivering stable output performance, extended service lifespan and improved overall operation reliability. Boasting excellent compatibility and superior comprehensive performance, it serves as a cost-effective premium replacement solution for original equipment parts.

Safety Features

Reverse-Prevention Valve System

The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.

One-way valve design ensures hydraulic oil flows in only one direction
Prevents motor reversal due to external forces or hydraulic fluctuations

This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.

Product Specifications

Compatible Models	CX210C/SH210-5
Category	Excavator travel motor
Brand	TGFQ
Part Numbers	KRA1426/KRA1860/KRA10120/KRA15440
Packing	Wooden Case
Delivery Time	1-3 days after payment confirmation
Shipping Methods	By Sea, Air, or Express

Quality Assurance

Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.

Hydraulic Motor Applications

Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.

Product Images

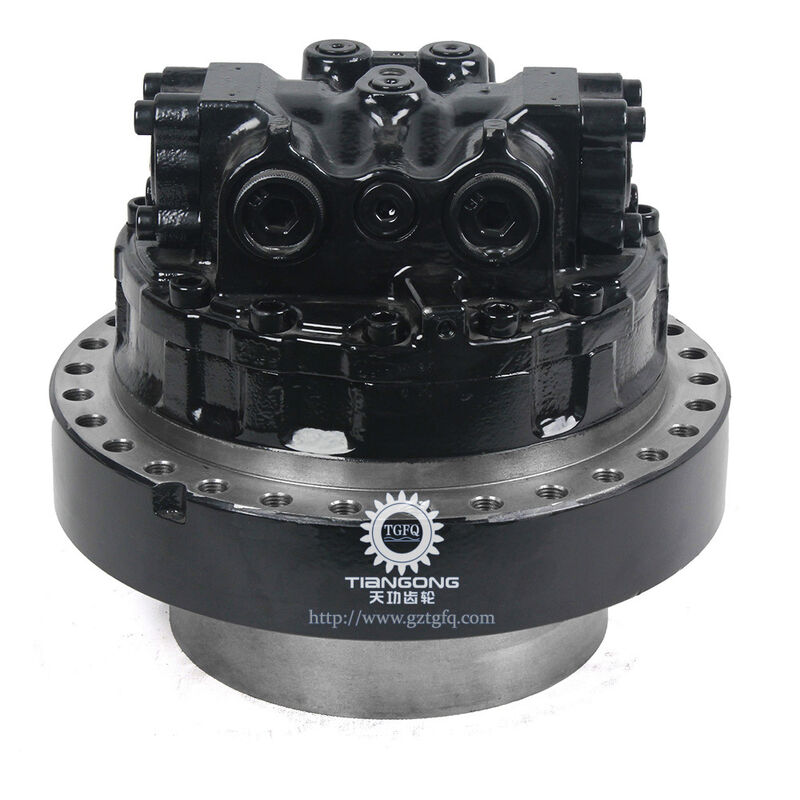

CX210C/SH210-5 Travel motor MAG170VP-3800 KRA1426/KRA1860/KRA10120/KRA15440 0

CX210C/SH210-5 Travel motor MAG170VP-3800 KRA1426/KRA1860/KRA10120/KRA15440 1

CX210C/SH210-5 Travel motor MAG170VP-3800 KRA1426/KRA1860/KRA10120/KRA15440 2

CX210C/SH210-5 Travel motor MAG170VP-3800 KRA1426/KRA1860/KRA10120/KRA15440 3

Travel Motor Parts Breakdown

Parts List - Assembly 1

#	Part No.	Description	Qty
	KRA1860	MOTO-REDUCTION GEAR	1
2	NSS	NOT SOLD SEPARAT; Housing	1
4	NSS	NOT SOLD SEPARAT; Plate	1
21	LJ00743	VALVE, PRESSURE RELI; EF	2
	----	Replaced By 160565a1
	----	Consists Of Ref. Numbers 22 To 39
21	160565A1	VALVE	2
	----	Consists Of Ref. Numbers 22 To 39
22	NSS	NOT SOLD SEPARAT; Sleeve, Coupling	1
23	NSS	NOT SOLD SEPARAT; Poppet, Valve	1
24	NSS	NOT SOLD SEPARAT; Seat, Valve	1
25	NSS	NOT SOLD SEPARAT; Seat, Spring	1
26	NSS	NOT SOLD SEPARAT; Spring	1
27	NSS	NOT SOLD SEPARAT; Plug	1
28	155225A1	O-RING	1
29	NSS	NOT SOLD SEPARAT; Guide	1
30	NSS	NOT SOLD SEPARAT; Piston	1
31	154491A1	O-RING	1
32	153974A1	BACK-UP RING	2
33	NSS	NOT SOLD SEPARAT; Spring	1
34	NSS	NOT SOLD SEPARAT; Seat, Spring	1
35	NSS	NOT SOLD SEPARAT; O-Ring	1
36	NSS	NOT SOLD SEPARAT; Setscrew	1
37	NSS	NOT SOLD SEPARAT; Nut	1
38	154479A1	O-RING	1
39	153964A1	BACK-UP RING	2
42	NSS	NOT SOLD SEPARAT; Spool	1
43	NSS	NOT SOLD SEPARAT; End	1
44	TJ00203	FILTER	1
45	154447A1	O-RING	1
46	154443A1	O-RING	1
47	153940A1	BACK-UP RING	1
48	154061A1	BACK-UP RING	1
49	160545A1	RING, SNAP; RING SNAP	1
55	NSS	NOT SOLD SEPARAT; Plug
59	161773A1	PLUG	4
60	154467A1	O-RING,10.8mm ID x 2.4mm Width	4
64	LB00545	SHAFT	1
65	LS00128	MANIFOLD VALVE	1
	----	Consists Of Ref. Numbers 66 To 74
66	NSS	NOT SOLD SEPARAT; Block	1
67	NSS	NOT SOLD SEPARAT; Piston Assy	9
68	NSS	NOT SOLD SEPARAT; Holder	1
69	NSS	NOT SOLD SEPARAT; Coupling	1
70	160103A1	RING, SNAP; RING SNAP	1
71	160203A1	SPRING SEAT	1
72	160590A1	SPRING	1
73	158113A1	COLLAR	1
74	155631A1	COTTER PIN	3
75	LR00581	PLATE	1
76	155950A1	BALL	2
77	NSS	NOT SOLD SEPARAT; Piston	2
78	LB00546	BEARING,50mm ID x 90mm OD x 20mm W	1
79	LB00547	BEARING,35mm ID x 72mm OD x 17mm W	1
80	155578A1	PIN; COTTER PIN	1
81	108R014Z035N	BOLT	10
82	LE00779	OIL SEAL	1
83	LR00582	PLATE	3
84	165696A1	PLATE	2
85	LJ00746	PISTON	1
86	165720A1	OIL SEAL	1
87	165721A1	SEALING RING	1
88	156090A1	SPRING	8
89	160097A1	COTTER PIN	4
90	160592A1	SPRING	2
91	160330A1	PORT	1
92	154463A1	O-RING	4
93	155220A1	O-RING	1
	LZ00378	SEAL KIT

Warehouse & Inventory Capacity

Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.

Frequently Asked Questions

Can I order a sample for testing first?

Yes, we welcome sample orders for testing and evaluation.

How do I place an order?

Simply provide the model and quantity you need. We will issue a proforma invoice, and upon payment confirmation, your order will be processed. Preparation time varies based on order complexity.

Do you have your own factory?

Yes, we operate our own manufacturing facility with 23 years of specialized experience in the excavator gear industry.
