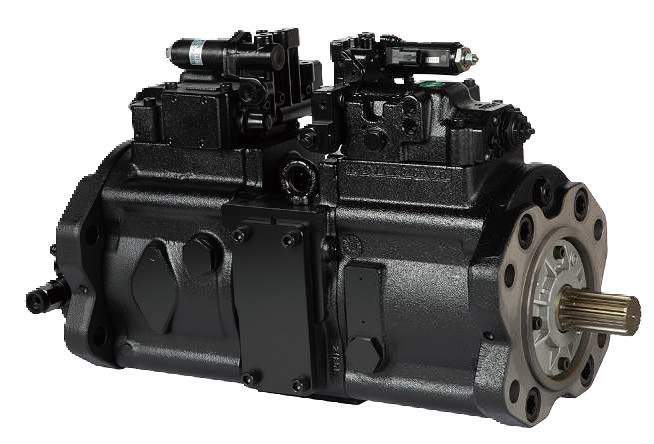

K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM
  • name
  • name
  • name

K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM

Brand Name: TGFQ
Model Number: SK230-6E
MOQ: 1
Price: 945.00usd
Payment Terms: TT/LC/
Detail Information
Product Description
Detail Information
Part Name:
Hydraulic Pump
Qaulity:
Top Quality
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Part Number:
LQ10V00006F1
Pump Number:
K3V112DTP-9TEL
Weight:
155KG
Bucket Capacity:
0.2 M3
Apply To Mode:
Kobelco / Hydraulic Excavator
Mechanical:
Excavator
Supply Ability:
300+
Highlight:

SK230-6E excavator hydraulic pump

,

K3V112DTP-9TEL main pump

,

LQ10V00006F1 hydraulic system pump

Product Description
K3V112DTP-9TEL Hydraulic Main Pump for SK230-6E Excavator
Enhanced Safety Features for Operator Protection
The K3V112DTP-9 hydraulic pump incorporates advanced safety features designed to protect both operators and equipment. Engineered with a pressure relief valve to prevent excessive pressure buildup, this system reduces the risk of component failure and hydraulic oil leaks. The electronic control system includes comprehensive fault-detection capabilities that alert operators to potential issues such as low oil levels or high temperatures, enabling timely intervention. Compliant with international safety standards, the K3V112DTP-9 ensures regulatory compliance across global markets.
Product Components & Parts
K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM 0 K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM 1 K3V112DTP-9TEL for SK230-6E LQ10V00006F1 MAIN PUMP EXCAVATOR HYDRAULIC SYSTEM 2
Position Part Number Quantity Part Name
NSS.LQ10V00006F1[1]HYDRAULIC PUMP
1112437U420S111[1]SHAFT
113YN10V00013S113[1]SHAFT
1142437U213S114[1]COUPLING
1232437U213S123[2]BEARING
1242437U213S124[2]BEARING
1272441U723S127[4]SPACER
141NSS[2]NOT SOLD SEPARATELY
151NSS[18]NOT SOLD SEPARATELY
152NSSS[18]NOT SOLD SEPARATELY
1532437U213S153[2]PLATE
156YN10V00005S156[2]BUSHING
1572437U213S157[18]SPRING
2112441U242S211[2]PLATE
212NSS[2]NOT SOLD SEPARATELY
214NSS[2]NOT SOLD SEPARATELY
2512437U213S251[2]PLATE
2612437U420S261[1]COVER
2712437U213S271[2]CASE
3122437U213S312[1]COUPLING BLOCK
313NSS[1]NOT SOLD SEPARATELY
314NSS[1]NOT SOLD SEPARATELY
325YN10V00013S325[1]COVER
4012437U213S401[8]SCREW
406ZS23C08020[4]SCREW, Hex Socket Head, M8 x 20mm
407ZS23C06030[3]SCREW, Hex Socket Head, M6 x 30mm
4662441U667S466[2]PLUG
4682441U436S469[4]PLUG
4902441U722S490[20]PLUG
531NSS[2]NOT SOLD SEPARATELY
5322437U213S532[2]PISTON
5342437U213S534[2]STOP
5352437U213S535[2]STOP
546YN10V00013S546[2]SPACER
548NSS[2]NOT SOLD SEPARATELY
708ZD12G03500[2]O-RING, 34.40mm ID x 40.60mm OD x 3.10mm
710ZD12G09500[1]O-RING, 3.1mm Thk x 94.4mm ID, 90 Duro
717ZD12G14500[4]O-RING, 144.40mm ID x 150.60mm OD x 3.10mm
724ZD12P00800[16]O-RING, 1.9mm Thk x 7.8mm ID, 90 Duro
725ZD12P01100[7]O-RING
728ZD12P02400[4]O-RING
732ZD12P01800[2]O-RING
7742441U474S774[1]OIL SEAL
789ZD85P01800[2]RING
792ZD85G03500[2]RING
806ZN12C16010[2]NUT
808ZN17C20012[2]NUT
824ZR16X04000[2]RING
8852441U723S885[2]PIN
886ZP26D06014[4]PIN
901ZS91C01000[2]BOLT
9532437U188S953[2]CAP, M10 x 20mm
9542437U213S954[2]SCREW
9812437U407S981[1]LABEL
9832437U407S983[2]RIVET
Why Choose TGFQ for Your Excavator Parts
TGFQ Stands Out in Excavator Part Supply
  • Precision Through VIN Matching: Our team uses your excavator's VIN to verify compatibility with its unique serial number and optional features. This approach has helped 520+ clients avoid incorrect part issues in the past year.
  • Flexible Ordering for All Scales: Whether you're a small shop needing a single electrical component ($50 minimum) or a construction firm ordering 150+ engine parts, we offer bulk discounts up to 15% with fast turnaround for urgent orders.
  • Ongoing Post-Purchase Assistance: After delivery, you'll receive free maintenance resources and quarterly updates on part upgrades for your equipment, ensuring optimal performance and longevity.
Trusted by clients in 30+ countries—including a North American fleet operator with 6 years of repeat business—TGFQ is more than a supplier; we're your long-term partner in equipment maintenance and performance.
