Good price online

products details

Home > Products >
Excavator Gear
>
High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642
All Category

Excavator Final Drive

Excavator Swing Drive

Excavator Travel Gearbox

Excavator Swing Gearbox

Excavator Travel Motor

Excavator Swing Motor

Excavator Final Drive Parts

Excavator Gear

Excavator Seal Kit

Excavator Bearing

Excavator Hydraulic Pump

Hydraulic Motor Parts
Contact Us
Mr. jaming zhang
jaming@gztgfq.com
+8613802793958
Contact Now
High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642
  • name
  • name

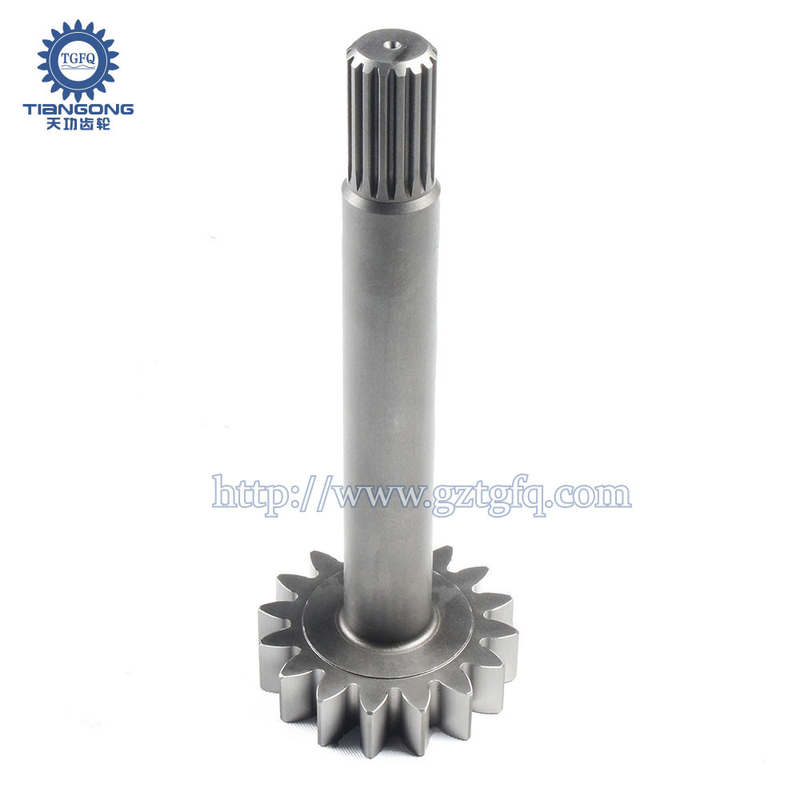

High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642

Brand Name: TGFQ
Model Number: EX1200-6
MOQ: 1 pc
Price: 65.00
Packaging Details: INNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GUANGZHOU,CHINA
Model:
EX1200-5C/EX1200-6
Processing Method:
Shaft
Part Number:
2047642
Material:
Steel/Alloy
MOQ:
1 Piece
Size:
Customized
Packaging:
Wooden Case/Carton/Pallet
Appliion:
Excavator
Supply Ability:
300 pcs / month
Highlight:

Precision Designed Excavator Gearbox shaft

,

High Quality Excavator Gearbox shaft

,

2047642 Excavator Gearbox shaft

Product Description
High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642
High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 0 High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 1 High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 2 High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 3
Technical Specifications
Teeth: 16/16 Teeth
Dimensions: OD: 151MM, Length: 407MM
Component Parts List
Item Part Number Quantity Description
01013435[1]SPINDLE
2J931860[4]BOLT
3A590918[4]WASHER;SPRING
44271596[1]O-RING
64688059[1]MOTOR;OIL
71033971[1]DRUM
92027546[1]SUPPORT
10M341230[18]BOLT;SOCKET
114082698[1]SEAL;GROUP
124224213[1]BRG.;ROL.
134236786[1]BRG.;ROL.
154661591[1]SPROCKET
174085857[30]WASHER
18J932785[30]BOLT
193045511[1]NUT
203045510[1]PLATE;LOCK
21J901430[2]BOLT
224471870[4]BRG.;SPH.ROL.
231030005[1]CARRIER
243094471[4]GEAR;PLANETARY
26959503[4]RING;RETAINING
274235272[4]PIN;SPRING
284464815[4]PIN
294263905[1]SPACER
303094470[1]GEAR;SUN
324236701[1]O-RING
33J782470[28]BOLT;SOCKET
351030106[1]GEAR;RING
372047641[1]CARRIER
383093778[4]GEAR;PLANETARY
394452484[4]BRG.;NEEDLE
404201913[8]PLATE;THRUST
414464814[4]PIN
424239705[4]PIN;SPRING
434219641[1]SPACER
443093780[1]GEAR;SUN
462047640[1]CARRIER
473093777[3]GEAR;PLANETARY
484464813[3]PIN
494096554[3]BRG;NEEDLE
504239572[6]PLATE;THRUST
514149437[3]PIN;SPRING
534484178[1]SPACER
542047642[1]SHAFT;PROP.
561030007[1]COVER
About Our Company
High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 4 High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 5 High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 6 High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 7
Exhibition Show
High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 8 High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 9 High-Quality Excavator Gearbox Shaft Prop EX1200-5C/EX1200-6 2047642 10
Product Description
The Excavator Swing Drive for EC950E is a crucial component that ensures smooth and efficient operation of excavators. This excavator travel reducer is specifically designed for the EC950E model, compatible with parts numbers VOE14712083 and VOE14666239. It plays a vital role in the excavator travel reduction process, providing the necessary power and torque for effective machine movement.
Constructed with high-quality materials, this excavator travel gearbox component is built to withstand the rigors of heavy-duty excavating tasks. The inner packing is meticulously executed, with shrink film wrapping for added protection during transportation and storage.
Whether you're involved in construction, mining, or any industry requiring excavator use, having a reliable swing drive is essential. The EC950E Excavator Swing Drive offers durability, efficiency, and high performance, making it a valuable investment for your equipment.
Packing and Shipping
Product: Excavator Swing Drive
Description: High-quality swing drive for excavators, designed for durability and performance
Packaging: Securely packaged in a sturdy cardboard box with foam padding to prevent damage during transit
Shipping: Fast and reliable shipping services with prompt order processing and tracking information provided
Frequently Asked Questions
What is the brand of the Excavator Swing Drive?
The brand is TGFQ.
What is the model number of the Excavator Swing Drive?
The model number is DX150.
What is the minimum order quantity for the Excavator Swing Drive?
The minimum order quantity is 1.
What is the price of the Excavator Swing Drive?
The price is $835.
What are the packaging details for the Excavator Swing Drive?
The packaging details include a Plywood Case.
What is the delivery time for the Excavator Swing Drive?
The delivery time is 3 days.
What are the payment terms for the Excavator Swing Drive?
The payment terms are TT (Telegraphic Transfer).
What is the supply ability of the Excavator Swing Drive?
The supply ability is 20+ units.
