VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts

Product Details

Place of Origin: CHINA

Brand Name: TGFQ

Model Number: EC200D EC210D EC200E

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 500.00-1000.00USD

Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Delivery Time: 1-3days

Payment Terms: L/C, T/T, D/P, D/A

Supply Ability: 500 pcs / month

Get Best Price
Highlight:

EC210D Excavator Travel Gearbox

,

EC200D Excavator Travel Gearbox

,

VOE14713821 Excavator Travel Gearbox

Product Name:
Excavator Travel Reducer
Model:
EC200D EC210D EC200E
Part Number:
VOE14713821
Package Size:
58*58*58CM
Holes:
30/22
Applicable Industries:
Machinery Repair Shops, Retail, Construction Works
Product Name:
Excavator Travel Reducer
Model:
EC200D EC210D EC200E
Part Number:
VOE14713821
Package Size:
58*58*58CM
Holes:
30/22
Applicable Industries:
Machinery Repair Shops, Retail, Construction Works
VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts

EC200D EC210D Travel Gearbox Travel Motor Reducer Final Drive Parts VOE14713821

Product Parameter:

 Description:  Excavator Travel Reducer
 Material:  Iron
 Shaft:  10/18T
 Model:  EC200D EC210D EC200E
 Part Number:  VOE14713821
 Package:  Standard Exporting Wooden Box or As Required

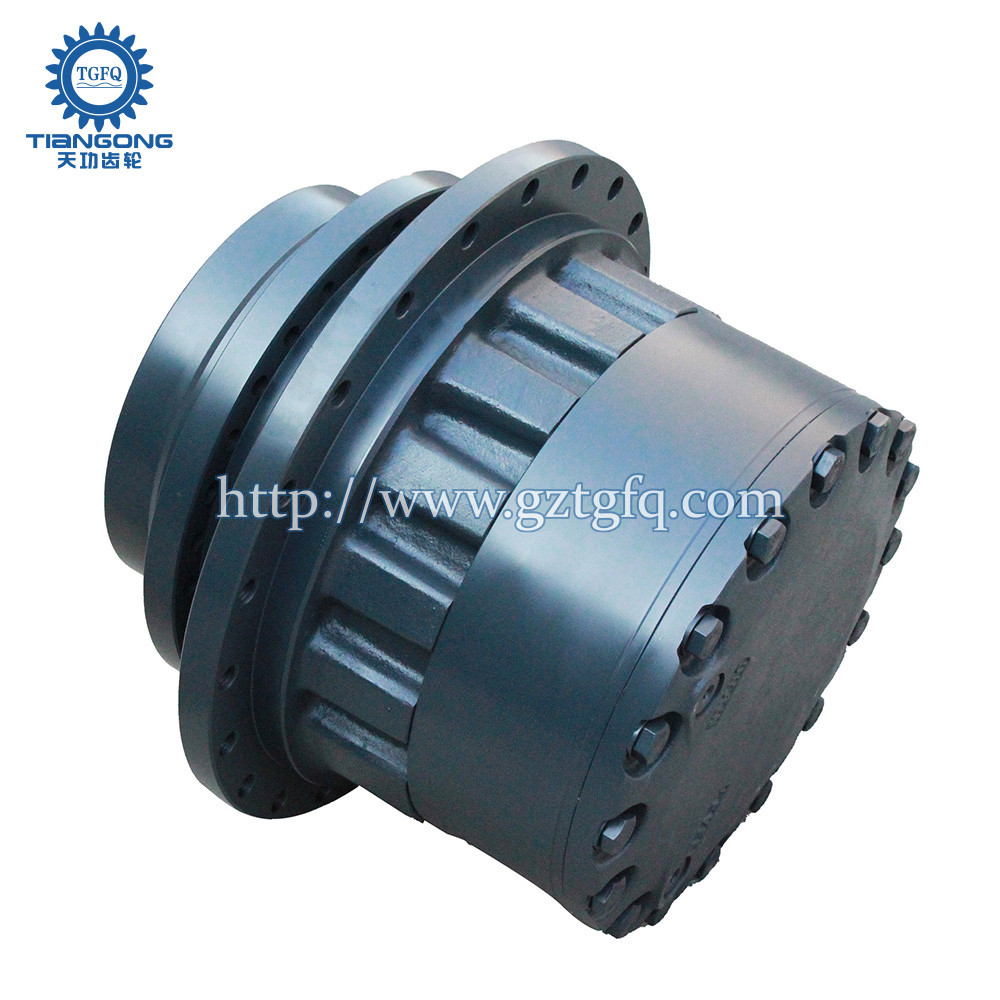

EC200D Final Drive Photo:
VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 0VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 1VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 2VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 3VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 4VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 5VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 6
EC200D Final Drive Drawing:
VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 7
Pos. Part No Qty Parts Name Comments
  VOE14713821 [2] Travel gearbox
1 VOE14713822 [1] Housing
2 VOE14693033 [2] Bearing
3 VOE14713823 [1] Seal
  VOE14730966 [2] Sealing ring
  VOE14730967 [2] O-ring
4 VOE14712551 [3] Collar THICK = 10,8 mm
4 VOE14726582 [3] Collar THICK = 10,9 mm
4 VOE14726583 [3] Collar THICK = 11,0 mm
4 VOE14726584 [3] Collar THICK = 11,1mm
4 VOE14726585 [3] Collar THICK = 11,2 mm
4 VOE14726586 [3] Collar THICK = 11,3 mm
4 VOE14732107 [3] Collar THICK = 11,4 mm
5 SA9324-21212 [2] Pin
6 VOE14713825 [1] Gear
  VOE14713826 [1] Planet carrier
7 VOE14713827 [1] Planet carrier
8 SA1036-00290 [1] Thrust ring
9 VOE14713828 [4] Gear
10 VOE14713829 [4] Needle roller bearing
11 VOE14718296 [8] Thrust washer
12 VOE14713830 [4] Pin
13 SA9325-06012 [4] Spring pin
14 VOE14713831 [1] Gear
15 VOE948341 [1] Snap ring
  VOE14713832 [1] Planet carrier
16 VOE14713833 [1] Planet carrier
17 VOE14713834 [3] Gear
18 VOE14713835 [3] Needle roller bearing
19 VOE14713836 [6] Thrust washer
20 VOE14713837 [3] Pin
21 SA9325-06012 [3] Spring pin
22 VOE14505753 [1] Ring
23 VOE14713838 [1] Gear
24 SA7117-15230 [1] Pad
25 VOE14713839 [1] Cover
26 VOE60113872 [16] Plain washer
27 VOE997473 [16] Hexagon screw
28 VOE983505 [2] O-ring
29 VOE14577793 [2] Plug
30 VOE914515 [1] Retaining ring
Performance:
Final Driving Installation Precautions:
Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved. Check for leakage from all motor parts. Ensure the system is operating within the specified working temperature. Check the pressure is operating within specified range.

Diagnosis & Maintenance:
• If motor is running with an unusual sound, unscrew the plug from the case drain and check whether the oil level is present. add the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities, need replace the oil and keep it clean. to keep the life of the Track Drive Motor.
• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not the motor is breakdown.

VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 8



VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 9



VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 10



OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 11

VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts 12

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
