Excavator Final Drive

ZX135US-3 Travel Motor Final Drive Assy For ZAX130UR-3 Excavator Travel Devicer

All Category

Hydraulic Motor Parts

Ms. Denise

denise@gztgfq.com

+8615920156215

Contact Now

ZX135US-3 Travel Motor Final Drive Assy For ZAX130UR-3 Excavator Travel Devicer

Brand Name:	TGFQ
Model Number:	ZX130US-3 ZAX130UR-3 ZAX130-5A
MOQ:	1
Price:	1000.00-5000.00USD
Packaging Details:	NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

ZX135US-3 ZAX130UR-3 ZAX130-5A

Product Name:

Excavator Final Device Assy

Place Of Origin:

Guangdong, China

Part Number:

9289616 / 9289617

Outer Packing:

Wooden Case

Brand:

TGFQ

Supply Ability:

100 Pcs / Month

Highlight:

ZX135US-3 Travel Motor Final Drive Assy

ZAX130UR-3 Final Drive Assy

Product Description

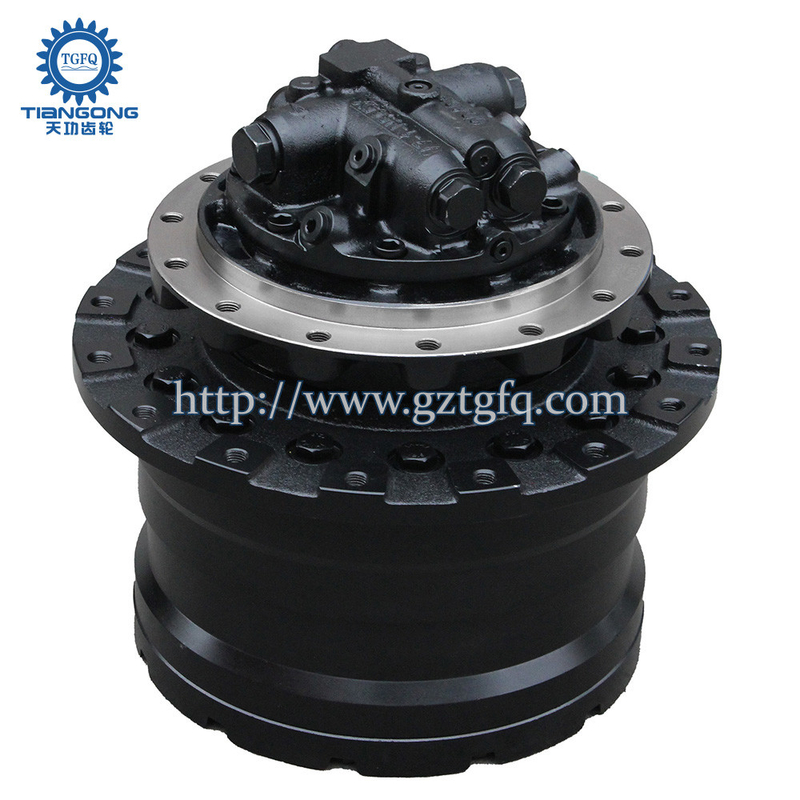

ZX135US-3 Travel Motor Final Drive Assy For ZAX130UR-3 Excavator Travel Devicer

ZX135US-3 Travel Motor Final Drive Assy for ZAX130UR-3 Excavator Travel Devicer Final Drive

Product Specifications

Model: ZX135US-3 ZAX130UR-3 ZAX130-5A

Category: Excavator Final Device Assy

Brand: TGFQ

Origin: China

Frame/Sprocket: 14/16

Part Numbers: 9289616 / 9289617

Payment Terms: L/C, T/T, D/P, D/A

Shipping: By Sea, By Air or By Express

Quality Guarantee

We will check the starter motor and send detail pictures to buyer to confirm before shipping.

What is a Final Drive?

The final drive is the final point of contact between the engine and the transmission. It is a mechanical device that converts torque from the engine to mechanical power. Power take-off (PTO) is a type of electrical system that transfers electrical energy from a source to an output.

Product Images

Travel Hydraulic Motor Assembly Drawing

Parts List - Travel Device Assembly

Pos.	Part No	Qty	Parts Name	Comments
	9289616	[2]	TRAVEL DEVICE ASSY	I 9289617 (for assembly of machine)
	9289617	[2]	TRAVEL DEVICE ASSY	(for transportation)
0	9289613	[1]	MOTOR;OIL	I 9289614 (for assembly of machine)
0	9289614	[1]	MOTOR;OIL	(for transportation)
2	4110369	[1]	SEAL;GROUP
3	4321887	[2]	BRG.;ROL.
4	1028028	[1]	DRUM
5	1028027	[1]	SPROCKET
6	J931640	[16]	BOLT
7	1028042	[1]	GEAR;RING
8	J931660	[16]	BOLT
10	3085728	[1]	NUT
11	4436242	[1]	PIN;KNOCK
13	1028041	[1]	CARRIER
14	3088341	[3]	GEAR;PLANETARY
15	4354289	[6]	BRG.;NEEDLE
16	4192982	[12]	PLATE;THRUST
17	4245966	[3]	PIN
18	4144020	[3]	PIN;SPRING
19	3085569	[1]	GEAR;SUN
21	2044805	[1]	CARRIER
22	4418771	[1]	SPACER
23	3087676	[3]	GEAR;PLANETARY
24	4354278	[3]	BRG.;NEEDLE
25	4178203	[3]	PIN
26	4192020	[3]	PIN;SPRING
27	2043769	[1]	SHAFT;PROP.
29	2044809	[1]	COVER
30	4631350	[1]	PIN;STOPPER
31	4609016	[12]	BOLT;SEMS	I 4699148
31	4699148	[12]	BOLT;SEMS
32	4245797	[3]	PLUG
34	+++++++	[1]	NAME-PLATE
35	M492564	[2]	SCREW;DRIVE

Our Warehouse & Inventory

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse. This ensures that we have sufficient inventory and can respond to customers' needs faster. Fast delivery is our competitive advantage.

Frequently Asked Questions

Q: What products do you provide?

A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.

Q: Can I order samples for testing first?

A: Of course! We welcome sample orders for testing and evaluation.

Q: How do I place an order?

A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q: Do you have your own factory?

A: Yes, we have our own factory and have 23 years of production experience in the excavator gear industry.
