Product Details
Place of Origin: CHINA
Brand Name: TGFQ
Model Number: PC160-7 PC160-8 TB135
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1000.00-5000.00usd
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Delivery Time: 1-3days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Applicable Industries: |
Architectural Engineering |
Product Name: |
Swing Motor Assy Parts |
Model: |
PC160-7 PC160-8 TB135 |
Part Number: |
19031-28900 |
Weight: |
60KG |
Brand: |
TGFQ |
Applicable Industries: |
Architectural Engineering |
Product Name: |
Swing Motor Assy Parts |
Model: |
PC160-7 PC160-8 TB135 |
Part Number: |
19031-28900 |
Weight: |
60KG |
Brand: |
TGFQ |
PC160-8 Swing Motor For Excavator PC160-7 Takeuchi TB135 Swing Motor
Overview Of Swing Motor
Excavator slewing hydraulic system oil circuit, it is mainly composed of slewing hydraulic motor, slewing ring gear and control valve, the system has braking, oil supply anti-cavitation, anti-hydraulic impact, slewing priority and other functions.
The slewing motor in the full hydraulic excavator is the key part of the slewing mechanism, which is to convert the oil pressure provided by the main pump into mechanical energy and input it to the reducer. Its working performance will directly affect the rotary speed of the whole machine, drive torque, rotary parking and parking brake, is the key to determine the productivity of the whole machine. Rotary motors are divided into low speed high torque motor and high speed rotary motor two egories

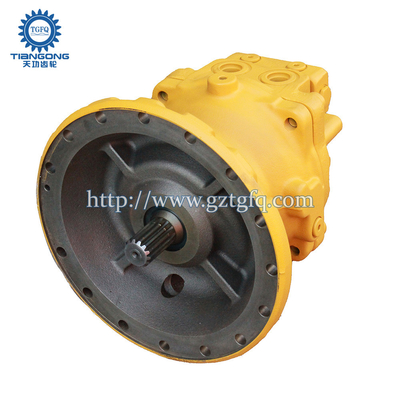

Picture Of Swing Motor
Drawing Of Swing Motor
| Pos. | Part No | Qty | Parts name | Comments |
| 21K-26-71100 | [1] | Swing Machinery Assembly Komatsu | 191 kg. | |
| ["SN: 25001-UP"] |$0. | ||||
| KBB0440-85018 | [1] | Motor Assembly Komatsu China | ||
| ["SN: 25001-UP"] |$1. | ||||
| 1 | KBB0441-32064 | [1] | Case Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 3 | KB20461-45905 | [1] | Bearing Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 4 | KBB0441-02019 | [1] | Shaft Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 5 | KBB0111-76011 | [1] | Plate Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 5 | KBB0112-17004 | [1] | Block Assembly Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 6 | KB20461-41509 | [1] | Cylinder Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 7 | KBB0112-01025 | [9] | Piston Assembly Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 8 | KB20461-41104 | [1] | Plate Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 9 | KB20461-47703 | [1] | Holder Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 10 | KB20381-02206 | [1] | Ring Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 11 | KB20461-41807 | [1] | Collar Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 12 | KB20461-41312 | [1] | Spring Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 13 | KB20461-41806 | [1] | Collar Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 14 | KB20461-40804 | [3] | Pin Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 15 | KBB0441-95007 | [3] | Plate Komatsu | 0.18 kg. |
| ["SN: 25001-UP"] | ||||
| 16 | KBB0441-96004 | [2] | Plate Komatsu | 0.08 kg. |
| ["SN: 25001-UP"] | ||||
| 17 | KBB0111-18051 | [1] | Collar Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 20 | KBB0441-94010 | [1] | Piston Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 22 | KBB0111-13135 | [16] | Spring Komatsu | 0.012 kg. |
| ["SN: 25001-UP"] | ||||
| 23 | KBB0111-13136 | [12] | Spring Komatsu | 0.000 kg. |
| ["SN: 25001-UP"] | ||||
| 24 | KBB0443-17056 | [1] | Cover Assembly Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 27 | KB21961-40638 | [2] | Plug Komatsu China | |
| ["SN: 25001-UP"] | ||||
| 29 | KB21961-40446 | [2] | Spring Komatsu China | |
| ["SN: 25001-UP"] |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.
FAQ:
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
