EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

Product Details

Place of Origin: CHINA

Brand Name: TGFQ

Model Number: EC460 EC480D

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 200.00-800.00USD

Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Delivery Time: 1-3days

Payment Terms: L/C, T/T, D/P, D/A

Supply Ability: 500 pcs / month

Get Best Price
Highlight:

EC480D Excavator Swing Gearbox

,

EC460 Excavator Swing Gearbox

,

Voe14541030 Swing Reducer

Product Name:
Swing Reduction
Model:
EC460 EC480D
Part Number:
VOE14541030 / SA7118-30130 / VOE14724277
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Place Of Origin:
Guangzhou China
MOQ:
1 Piece
Product Name:
Swing Reduction
Model:
EC460 EC480D
Part Number:
VOE14541030 / SA7118-30130 / VOE14724277
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Place Of Origin:
Guangzhou China
MOQ:
1 Piece
EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer

Excavator Spare Part Reducer EC460 EC480D Voe14541030 Swing Reducer Gearbox

Quick Details

Model: EC460 EC480D
Brand: TGFQ
Part Number: VOE14541030 / SA7118-30130 / VOE14724277
Part Name: Swing Reduction
Motor: M5X130
Process: Heat Treatment
Delivery Methods: By Air / By Express / By Sea

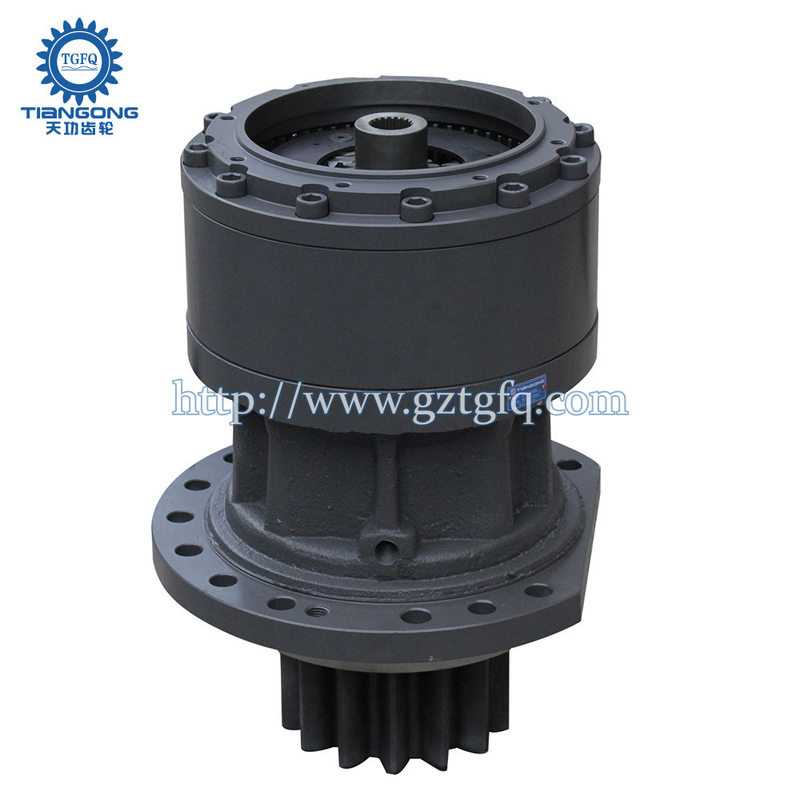

Product Photo:

EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer 0EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer 1EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer 2EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer 3

Drawing:

EC460 EC480D Excavator Swing Gearbox Voe14541030 Swing Reducer 4

Parts on group Swing gearbox:

Pos. Part No Qty Parts name Comments
  VOE14541030 [1] Swing gearbox
1 VOE14529015 [1] Valve
2 VOE14540404 [1] Shaft
3 VOE14540405 [1] Collar
4 VOE14509281 [1] Cover
5 VOE990596 [1] O-ring
6 VOE14508911 [1] Seal
7 VOE993025 [10] Hexagon screw
8 VOE14640027 [1] Roller bearing
9 VOE14558674 [1] Roller bearing
10 SA9541-01090 [1] Retaining ring
11 SA7118-30510 [1] Case
12 SA7118-30350 [1] Ring gear
13 VOE950677 [4] Pin
14 SA984363 [12] Bolt
15 SA7118-30370 [1] Plate
16 SA7118-30380 [1] Thrust ring
17 SA7118-30390 [1] Gear
18 SA7118-30480 [1] Washer
19 SA7118-30490 [1] Sun gear
20 SA7118-34510 [1] Adapter
21 SA7118-30200 [1] Planet carrier
22 SA7118-30230 [3] Pin
23 SA7118-30260 [6] Washer
24 SA9325-08010 [3] Spring pin
25 SA7118-30220 [3] Planetary gear
26 VOE14528725 [1] Planet carrier SER NO 11515-11718 SER NO 80001-80334
  VOE14528725 [1] Planet carrier SER NO 11719- SER NO 80335-
27 SA7118-30430 [3] Pin SER NO 11515-11718 SER NO 80001-80334
  VOE14528726 [3] Pin SER NO 11719- SER NO 80335-
28 VOE14550879 [3] Needle bearing SER NO 11515-11718 SER NO 80001-80334
  VOE14550879 [3] Needle bearing SER NO 11719- SER NO 80335-
29 SA7118-30450 [3] Washer
30 SA7118-30460 [3] Washer
31 SA9541-01042 [3] Retaining ring
32 SA9325-08010 [3] Spring pin
33 SA7118-30410 [1] Planet carrier
34 SA7118-30420 [3] Planetary gear
100 VOE14526214 [1] Overhaul kit

Size Information:

Swing Reducer Gearbox For EC460

Length(cm)
Width(cm)
Highly(cm)
Weight(KG)
48
48
70
200

Packaging Details:

1.According to orders,pack the spare parts one by one by oil paper.
2.Put the goods into wooden boxes if necessary especially for the shipments by sea.
3. Goods is packed by oil paper and plastic bags inside.
4.Using wooden case package.
5.We support the custom-made demand for package.
