SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction

Basic Information
Place of Origin: CHINA
Brand Name: TGFQ
Model Number: SK250-8 SK260-8
Minimum Order Quantity: 1
Price: 200.00-800.00USD
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Delivery Time: 1-3days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Product Name: Swing Reduction Model: SK250-8 SK260-8
Part Number: LQ32W00011F1 Applicable Industries: Machinery Repair Shops, Energy & Mining
Place Of Origin: Guangzhou China MOQ: 1 Piece
High Light:

SK260-8 Excavator Swing Gearbox

,

SK250-8 Excavator Swing Gearbox

,

Excavator Swing Gearbox LQ32W00011F1

Excavator LQ32W00011F1 Planetary Motor Reduction SK250-8 SK260-8 Swing Gearbox

Quick Details

Model: SK250-8 SK260-8
Brand: TGFQ
Part Number:LQ32W00011F1
Motor Number: LQ15V00015F2
Part Name: Swing Reduction
Process: Heat Treatment
Delivery Methods: By Air/ By Express/ By Sea

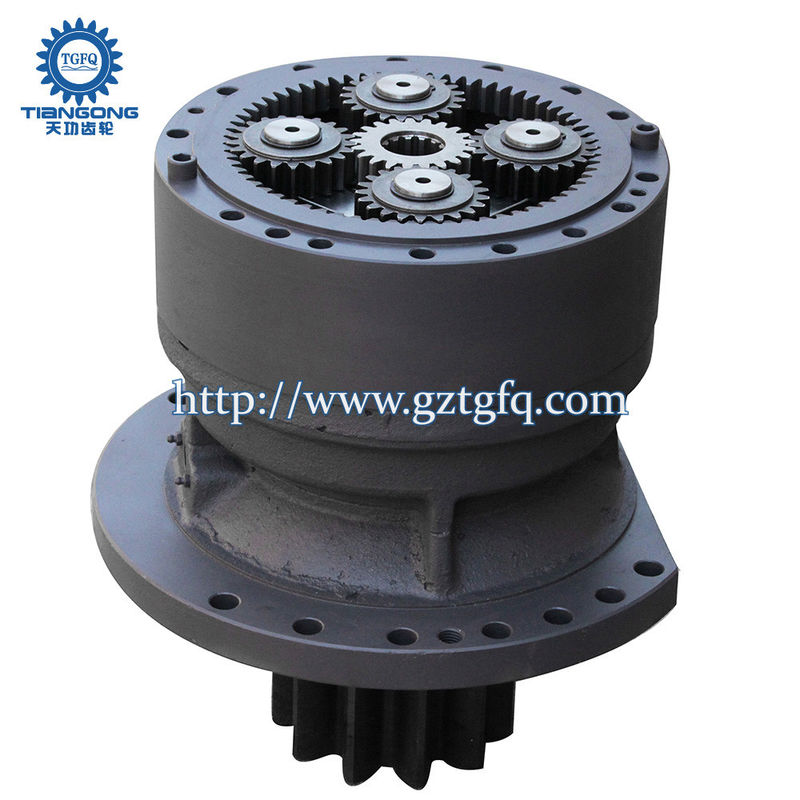

Product Photo:

SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 0SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 1SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 2SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 3

Drawing:

SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 4

Parts on group  :

Pos. Part No Qty Parts name Comments
. . LQ15V00015F2 [1] HYDRAULIC MOTOR,151CC KOB ASSY-Swing
1 LQ15V00015S001 [1] SNAP RING KOB
2 LQ15V00015S002 [1] OIL SEAL KOB SPRING
3 LQ15V00015S003 [1] ROLLER BEARING KOB ROLLER
4 LQ15V00015S004 [1] SPRING SEAT KOB SPRING
5 LQ15V00015S005 [1] PLATE KOB
6 LQ15V00015S006 [1] PLATE KOB
7 NSS [9] NOT SOLD SEPARAT CON PISTON
8 LQ15V00015S008 [3] PLATE KOB
9 LQ15V00015S009 [3] PLATE KOB
10 LQ15V00015S010 [1] O-RING KOB Superseded by part number: 45Z91D91
11 LQ15V00015S011 [1] PISTON KOB PISTON
12 LQ15V00015S012 [1] O-RING KOB
13 LQ15V00015S013 [19] SPRING KOB
14 LQ15V00015S014 [2] PISTON KOB
15 2436U1309S41 [3] CAP KOB PLUG
16 ZD12P01100 [3] O-RING KOB ID 10.8mm x OD 13.2mm
17 2441U455S53 [2] PIN KOB
18 LQ15V00015S018 [4] WASHER, LOCK KOB
19 LQ15V00015S019 [4] RING KOB
20 LQ15V00015S020 [4] BUSHING KOB
21 LQ15V00015S021 [1] PLATE KOB
22 LQ15V00015S022 [1] NEEDLE BEARING,45mm ID x 33mm OD x 20mm W KOB NEEDLE
23 LQ15V00015S023 [1] RING KOB RETAINING
24 NSS [1] NOT SOLD SEPARAT CON CYLINDER
25 NSS [1] NOT SOLD SEPARAT CON CASE
26 LQ15V00015S026 [1] RING KOB COLLAR
27 LQ15V00015S027 [1] SNAP RING KOB RETAINING
28 LQ20V00001F1 [2] HYDRAULIC VALVE KOB
29 LQ15V00015S029 [1] O-RING,183.74mm ID x 3.53mm Width KOB
32 NSS [1] NOT SOLD SEPARAT CON COVER
33 LQ22V00002F1 [2] HYDRAULIC VALVE KOB RELIEF
35 ZS23C16060 [4] SCREW,Hex Socket Head, M16 x 60mm KOB M16x2.0x60mm
36 2441U962S45 [2] CHECK VALVE KOB
37 2441U962S46 [2] SPRING KOB
38 2441U962S48 [2] PLUG KOB
39 ZD85P02600 [2] BACK-UP RING KOB ID 26 x OD 32 x Th 1.25mm
40 LP15V00002S027 [1] PLUG KOB
41 PH15V00004S013 [2] PISTON KOB
42 PH15V00004S012 [2] RING KOB


Our service:

1. We have advanced technoledge .


2. Quick delivery and competitive price.


3. The larger quantity you order, the better price and faster delivery we can supply.


4. We have a professional team to offer professional service for you.


5. We can offer used and new,  good quality, made in china parts to you.


6. All parts can check with part number, all parts can order follow part number.

SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 5



SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 6



SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 7



OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 8

SK250-8 SK260-8 Excavator Swing Gearbox LQ32W00011F1 Planetary Motor Reduction 9

FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts with in the warranty period free of charge.


Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: can I order one of our samples for testing first?
A: Of course!


Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
