Excavator SK235SR Swing Device SK230-6 Swing Reduction Gearbox LQ32W00009F1

Product Details

Place of Origin: CHINA

Brand Name: TGFQ

Model Number: SK230-6 / SK235SR

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 200.00-800.00USD

Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Delivery Time: 1-3days

Payment Terms: L/C, T/T, D/P, D/A

Supply Ability: 500 pcs / month

Get Best Price
Highlight:

SK235SR Swing Device

,

SK230-6 Swing Device

,

Swing Reduction Gearbox LQ32W00009F1

Product Name:
Swing Reduction
Model:
SK230-6 / SK235SR
Part Number:
LQ32W00009F1 / LQ32W00009F2
Quality:
High Guarantee
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Place Of Origin:
Guangzhou China
Product Name:
Swing Reduction
Model:
SK230-6 / SK235SR
Part Number:
LQ32W00009F1 / LQ32W00009F2
Quality:
High Guarantee
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Place Of Origin:
Guangzhou China
Excavator SK235SR Swing Device SK230-6 Swing Reduction Gearbox LQ32W00009F1

New SK230-6 Swing Reduction Gearbox LQ32W00009F1 Excavator Sprare Part SK235SR Swing Device

Quick Details

Model: SK200-8 HD / SK210-9
Brand: TGFQ
Part Number: LQ32W00009F1 / LQ32W00009F2 / LQ32W00007F2
Motor Number: LQ15V00015F1
Part Name: Swing Reduction
Process: Heat Treatment
Delivery Methods: By Air/ By Express/ By Sea

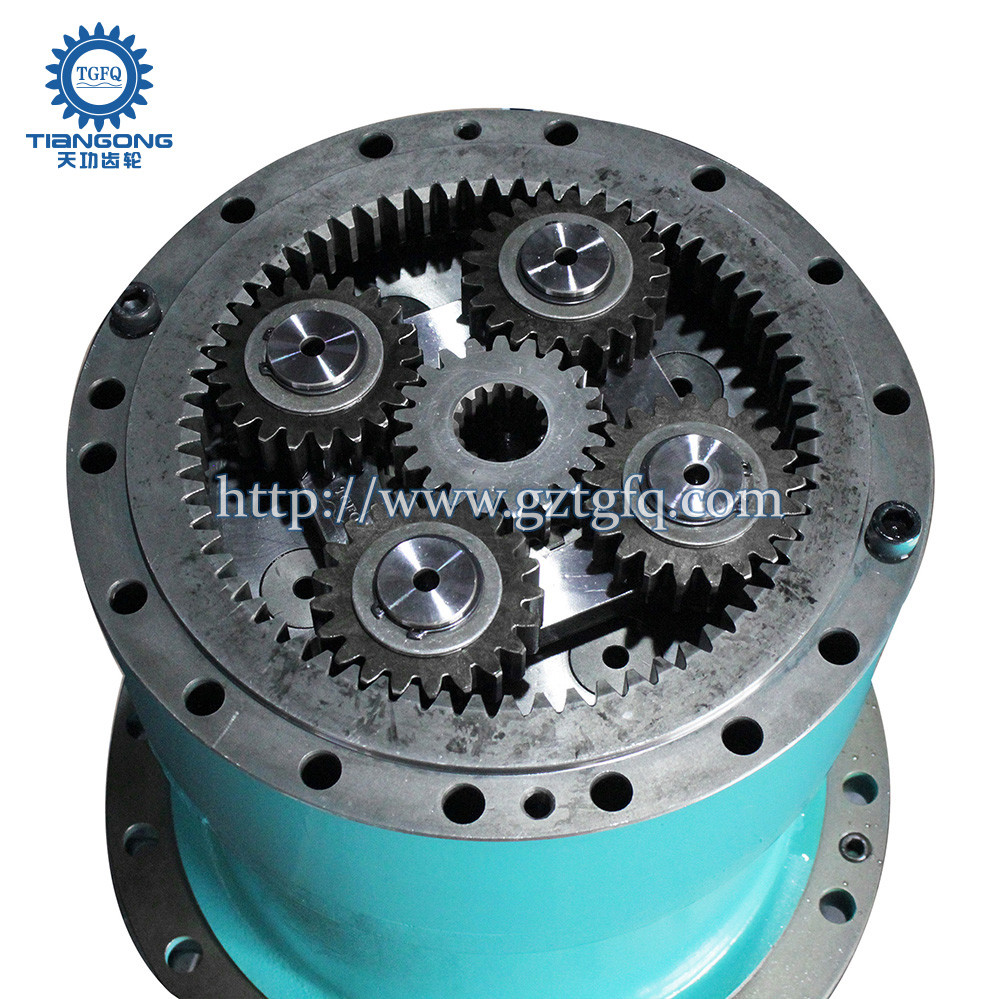

Product Photo:

Excavator SK235SR Swing Device SK230-6 Swing Reduction Gearbox LQ32W00009F1 0Excavator SK235SR Swing Device SK230-6 Swing Reduction Gearbox LQ32W00009F1 1Excavator SK235SR Swing Device SK230-6 Swing Reduction Gearbox LQ32W00009F1 2

Drawing:

Excavator SK235SR Swing Device SK230-6 Swing Reduction Gearbox LQ32W00009F1 3

Parts on group - DYNAMIC ACERA LL09U0575, LL09U607 (1/03-12/07) :

Pos. Part No Qty Parts name Comments
. . LQ32W00009F1 [1] GEAR REDUCTION UNIT KOB ASSY, SWING
1 LQ32W01002P1 [1] DRIVEN SPROCKET KOB SHAFT, PINION
2 ZD11G11000 [1] O-RING,109.40mm ID x 115.60mm OD x 3.10mm KOB ID 109.40 ± 0.91 x OD 115mm
3 LQ32W01014P1 [1] BUSHING KOB SLEEVE
4 LQ32W01021P1 [1] SEAL KOB SEAL, OIL
5 2418T17494 [1] SPACER KOB
6 ZS23C10030 [14] SCREW,Hex Socket Head, M10 x 30mm KOB M10x1.50x30mm Superseded by part number: ZS28C10030
7 ZE82T12000 [1] PLUG KOB 3/4" PT
8 LQ32W01003P1 [1] RETAINER KOB
9 LQ32W01016P1 [1] SPHERICAL BEARING KOB SPHERICAL
10 LQ32W01022P1 [1] BEARING ASSY KOB HOUSING
11 LQ32W01012P1 [1] SPACER KOB
12 ZS83C20030 [2] SCREW KOB Set -- M20x2.50x30mm
13 2420T6698D6 [1] PIPE KOB
14 ZG31U12000 [1] ELBOW KOB
15 LQ32W01015P1 [1] SPHERICAL BEARING KOB SPHERICAL
16 ZR16X10000 [1] RING KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm
17 2413J376 [1] DIFF. SPIDER KOB
18 LQ32W01010P1 [1] GEAR KOB SUN
19 LQ32W01005P1 [1] RING GEAR KOB
20 LQ32W01007F1 [1] SPIDER KOB ASSY
21 2410T352 [4] ROLLER SHAFT KOB
22 ZP26D08032 [4] PIN KOB Roll -- OD 08 x 32mm Long
23 LQ32W01018P1 [8] WASHER KOB THRUST
24 LQ32W01009P1 [4] DRIVEN SPROCKET KOB PINION
25 2425Z541 [4] NEEDLE BEARING,40mm ID x 54mm OD x 50mm W KOB NEEDLE
26 LQ32W01013P1 [8] WASHER KOB THRUST
27 2425Z540 [4] NEEDLE BEARING,40mm ID x 48mm OD x 25mm W KOB NEEDLE
28 LQ32W01011P1 [4] DRIVEN SPROCKET KOB PINION
29 ZR16X04000 [4] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
30 ZS23C14150 [16] SCREW,Hex Socket Head, M14 x 150mm KOB M14x2.0x150mm
31 LQ32W01027P1 [1] SHAFT, PLANETARY CAR KOB GEAR, SUN
32 2420T4530 [2] SCREW,M14 x 2 x 185mm KOB M14x2.0x185mm


Our service:

1. We have advanced technoledge .


2. Quick delivery and competitive price.


3. The larger quantity you order, the better price and faster delivery we can supply.


4. We have a professional team to offer professional service for you.


5. We can offer used and new,  good quality, made in china parts to you.


6. All parts can check with part number, all parts can order follow part number.
