| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TGFQ |
| Model Number: | ZX120 ZX110M |
| Minimum Order Quantity: | 1 |
| Price: | 200.00-800.00USD |
| Packaging Details: | NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 500 pcs / month |
| Product Name: | T.MISSION (SWING) (FOR ASSEMBLY OF MACHINE) | Model: | ZX120 ZX110M |
|---|---|---|---|
| Part Number: | 9196343 | Quality: | High Guarantee |
| Applicable Industries: | Machinery Repair Shops, Energy & Mining | Weight: | 110 KG |
| Highlight: | ZX120 Excavator Gearbox,ZX110M Excavator Gearbox,Excavator Swing Reduction |
||

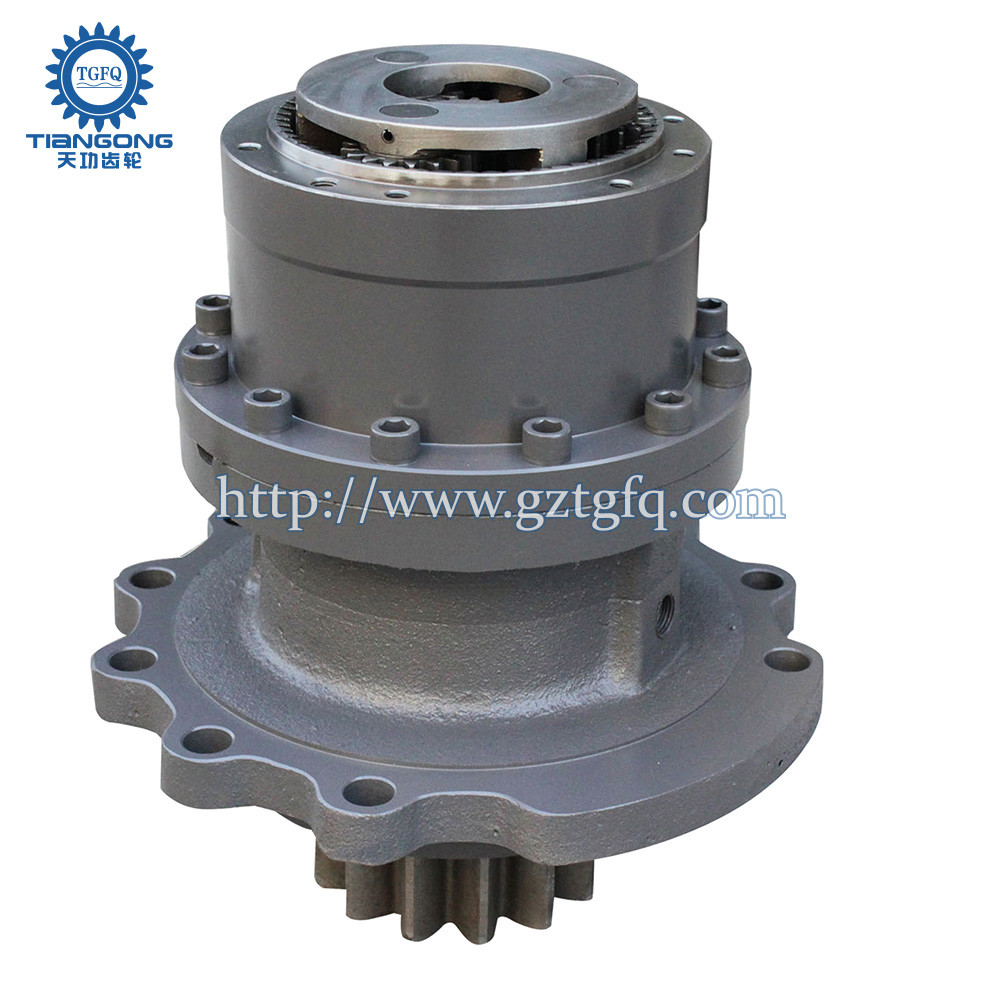

Excavator Parts Swing Reduction Assy Gearbox For ZX120 ZX110M
Quick Details |
| Model: ZX120 ZX110M |
| Brand: TGFQ |
| Part Number: 9196343 |
| Part Name: Excavator Swing Drive |
| Process: Heat Treatment |
| Delivery Methods: Air/ Express/ Sea |
Product Photo:
Drawing:
| Pos. | Part No | Qty | Parts name | Comments |
| 0 | 2044629 | [1] | SHAFT;PROP. | |
| 1 | 3083710 | [1] | SLEEVE | |
| 2 | A811095 | [1] | O-RING | |
| 3 | 4430041 | [1] | BRG.;ROL. | |
| 4 | 4411143 | [1] | SEAL;OIL | |
| 5 | 1027901 | [1] | HOUSING | |
| 6 | 4408119 | [1] | BRG.;ROL. | |
| 7 | 3083674 | [1] | NUT | |
| 8 | 4407745 | [1] | PLATE;LOCK | |
| 10 | J901020 | [2] | BOLT | |
| 11 | 2042965 | [1] | CARRIER | |
| 12 | 4176070 | [1] | PLATE;THRUST | |
| 13 | 4408102 | [3] | PIN | |
| 14 | 4414855 | [3] | BRG.;NEEDLE | |
| 15 | 3084940 | [3] | GEAR;PLANETARY | |
| 16 | 4414833 | [6] | PLATE;THRUST | |
| 17 | 4116308 | [6] | PIN;SPRING | |
| 19 | 3092035 | [1] | GEAR;SUN | |
| 20 | 2045146 | [1] | GEAR;RING | |
| 21 | M341440 | [12] | BOLT;SOCKET | |
| 23 | 2042964 | [1] | CARRIER | |
| 24 | 4244904 | [1] | PLATE;THRUST | |
| 25 | 4408122 | [3] | PIN | |
| 26 | 4430040 | [3] | BRG.;NEEDLE | |
| 27 | 3083741 | [3] | GEAR;PLANETARY | |
| 28 | 4408002 | [3] | PLATE;THRUST | |
| 29 | 3083740 | [1] | GEAR;SUN | |
| 31 | 3087949 | [1] | PIPE | |
| 33 | 94-2012 | [1] | PLUG | |
| 61 | 8082514 | [1] | COVER | (for transportation) |
| 62 | J011040 | [7] | BOLT;SEMS | |
| 62 | J271040 | [7] | BOLT;SEMS | T J901040 (for transportation) |
| J222010 | ||||
| 64 | 94-2011 | [1] | PLUG | (for transportation) |
| 65 | 3053093 | [1] | NAME-PLATE | (for transportation) |
| 66 | M492564 | [2] | SCREW;DRIVE | (for transportation) |
| 101 | 9177550 | [1] | MOTOR;OIL | I 9196961 (for assembly of machine) |
| 101 | 9196961 | [1] | MOTOR;OIL | (for transportation) |
| 102 | 927488 | [1] | RING;RETAINING | |
| 106 | 4298608 | [1] | CAP | |
| 107 | M341025 | [7] | BOLT;SOCKET | |
| 108 | 3053093 | [1] | NAME-PLATE | |
| 109 | M492564 | [2] | SCREW;DRIVE | |
| 114 | 4449144 | [1] | PIPE | |
| 115 | 3090862 | [1] | GAUGE;LEVEL | |
| 116 | 4449182 | [1] | PIPE | |
| 117 | 4436535 | [1] | SENSOR;PRES. | |
| 200 | 9196343 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
Compatible equipment models: 9196343:
ZX110 ZX110-E ZX110M ZX120 ZX120-E ZX120-HCMC ZX125US ZX125US-E ZX130-AMS ZX130-HCME ZX130H ZX130K ZX130W ZX130W-AMS ZX135US ZX135US-E ZX135US-HCME ZX135USK ZX135UST Hitachi
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by one.
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
