227-6113 E349D Excavator Swing Gearbox 296-6250 E345D

Basic Information
Place of Origin: CHINA
Brand Name: TGFQ
Model Number: E 345D / E 349D / E 345B
Minimum Order Quantity: 1
Price: 200.00-800.00USD
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Delivery Time: 1-3days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Product Name: Excavator Swing Gearbox Model: E345D / E349D / E345B
Part Number: 227-6113 / 227-6114 / 296-6250 Color: Yellow
Quality: High Guarantee Applicable Industries: Machinery Repair Shops, Energy & Mining
Product Description: The Swing Motor Makes The Excavator's Movements Richer And More Efficient.
High Light:

349D Excavator Swing Gearbox

,

296-6250 Excavator Swing Gearbox

,

E345D Excavator Swing Gearbox

227-6113 E349D Swing Gear Box 296-6250 E345D Swing Gearbox

Quick Details

Model:E345D / E349D / E345B
Brand: TGFQ
Part Number: 227-6113 / 227-6114 / 296-6250
Motor No.:M5X180
Part Name: Excavator swing gearbox without motor
Material: Steel
Process: Heat Treatment
1. Long life.

2. High strength.

3. Easier for maintenance.

4. More accurate.

5. Anti-corrosion.

6. Suitable for various environments.

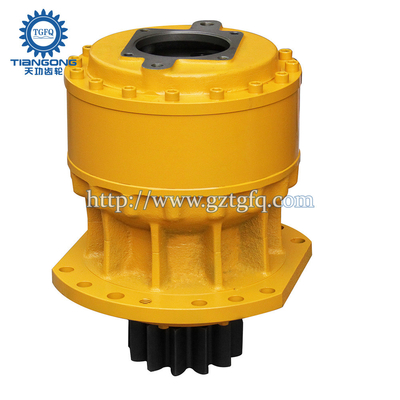

Product Photo:

227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 0

227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 1227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 2

Drawing:

227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 3

Pos. Part No Qty Parts name
1 4I-1422 I [1] HOSE AS
2 4I-7464 [4] GEAR-PLANETARY (25-TEETH)
3 4I-7466 [4] GEAR-PLANETARY (23-TEETH)
4 4I-7467 [1] GEAR-RING (72-TEETH)
5 6V-7238 [1] VALVE-SHUTOFF (SWING DRIVE)
6 7I-7728 [1] CARRIER-PLANETARY
7 7Y-0597 [1] SPACER-SPECIAL
8 7Y-1238 [1] CARRIER
9 093-1730 [2] RING-RETAINING
10 094-1509 [4] SHAFT-PLANETARY
11 094-1528 [8] WASHER (53X84X1-MM THK)
12 095-1806 [1] BEARING-ROLLER
13 096-2653 [1] RING-RETAINING
14 096-4339 [1] BEARING AS-ROLLER
  4D-7956 [1] RACE-ROLLER BEARING
  4L-0734 [1] RACE & ROLLER AS
15 110-7216 [1] GEAR-SUN (24-TEETH)
16 114-1383 [4] SHAFT-PLANETARY
17 114-1398 [1] GAUGE-OIL LEVEL (SWING DRIVE)
18 114-1399 [1] PIPE-GAUGE
19 114-1401 [1] COVER-HOUSING
20 114-1403 [1] CAGE
21 114-8234 [1] BREATHER (SWING DRIVE)(1/2-14-NPTF-THD)
      -OR-
  4H-6112 [1] BREATHER (SWING DRIVE)
      (1/4-18 NPTF-THD)
22 136-2802 [2] CONNECTOR
23 136-2803 [2] CLIP
24 136-2804 [1] BOSS (1/2-14-NPTF-THD)
      -OR-
  227-6215 [1] BOSS (1/4-18-THD)
25 169-5534 [1] HOUSING
26 169-5535 [1] GEAR-SUN (20-TEETH)
27 227-6108 [1] SHAFT-PINION
28 093-1731 [1] RING-RETAINING
29 094-0584 [8] WASHER (40.3X72X1-MM THK)
30 199-4582 [4] BEARING AS
31 095-0886 [4] PIN-SPRING
32 095-0891 [4] PIN-SPRING
33 135-9044 [2] SEAL-LIP TYPE
34 3K-0360 [1] SEAL-O-RING
35 5P-2235 [1] SEAL-O-RING
36 191-2513 [8] BEARING AS-ROLLER
37 7Y-0595 [1] SPACER (58X79.6X6-MM THK)
38 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
39 8T-4183 M [8] BOLT (M12X1.75X40-MM)
40 8T-4223 [10] WASHER-HARD (13.5X25.5X3-MM THK)
41 8T-4244 M [1] NUT (M12X1.75-THD)
42 8T-4956 M [1] BOLT (M12X1.75X35-MM)
43 8T-6385 M [16] BOLT (M16X2X180-MM)
44 9X-8257 [16] WASHER (17.5X30X3.5-MM THK)
45 1U-8846 B   SEALANT-GASKET
  B   USE AS REQUIRED
  I   REFER TO HYDRAULIC INFORMATION SYSTEM
  M   METRIC PART

Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by one.
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.
227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 4



227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 5



227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 6



OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 7

227-6113  E349D Excavator Swing Gearbox 296-6250 E345D 8

FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: can I order one of our samples for testing first?
A: Of course!


Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
