| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TGFQ |
| Model Number: | E324D E325C E329D |
| Minimum Order Quantity: | 1 |
| Price: | 200.00-800.00USD |
| Packaging Details: | NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 500 pcs / month |
| Product Name: | Excavator Swing Gearbox | Model: | E324D E325C E329D |
|---|---|---|---|
| Part Number: | 191-2693 | Shaft: | 12/42T |
| Package Size: | 65*65*80 CM | Applicable Industries: | Machinery Repair Shops, Energy & Mining |
| High Light: | E329D Swing Carrier Assembly,E324D Swing Carrier Assembly,191-2693 Excavator Swing Gearbox |
||
E324D E325C E329D Swing Carrier Assembly For Apply To Excavator Swing Reduction Gearbox
Quick Details |
| Model:E324D E325C E329D |
| Brand: TGFQ |
| Part Number: 191-2693 |
| Part Name: Excavator swing gearbox without motor |
| Weight: 299KG |
| Process: Heat Treatment |

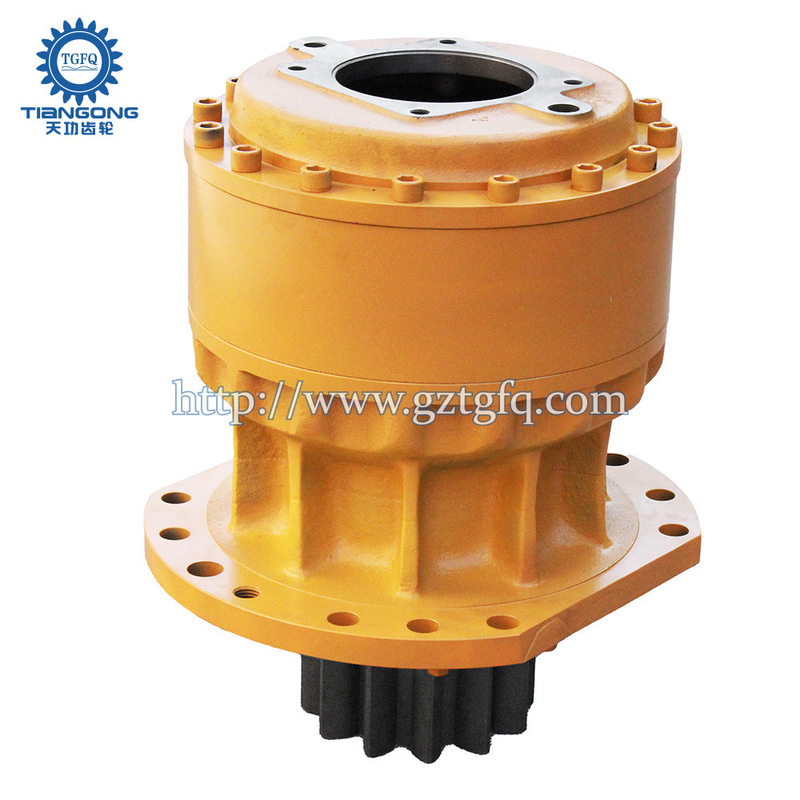

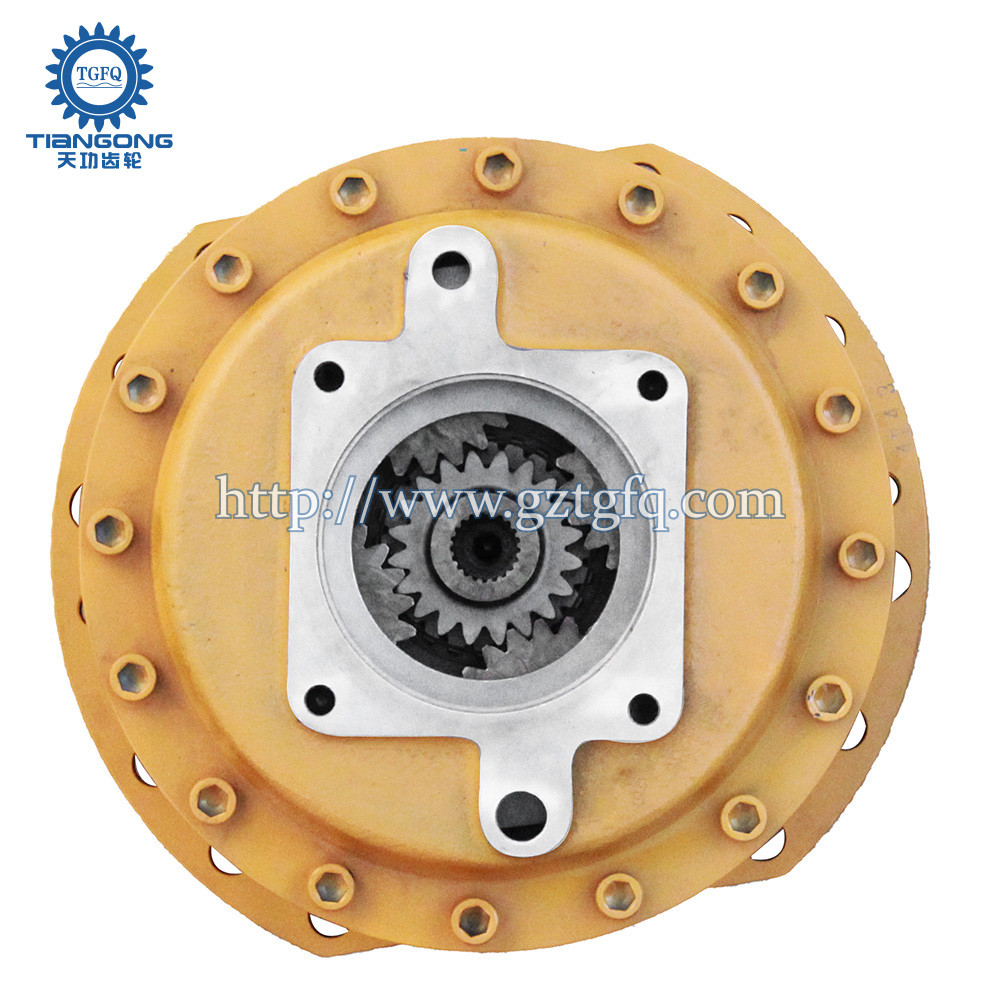

325C 329D Swing Gearbox Photo:
Drawing:
| Pos. | Part No | Qty | Parts name |
| 1 | 4I-7466 | [4] | GEAR-PLANETARY (23-TEETH) |
| 2 | 227-6221 | [1] | BREATHER AS (SWING DRIVE) |
| 2A. | 4H-6112 | [1] | BREATHER (SWING DRIVE) |
| 2B. | 227-6215 | [1] | BOSS (1/4-18-THD) |
| 2C. | 267-6785 | [1] | PIPE |
| 3 | 6V-7238 | [1] | VALVE-SHUTOFF |
| 4 | 7I-7728 | [1] | CARRIER-PLANETARY |
| 5 | 7Y-0225 | [3] | SHAFT-PLANETARY |
| 6 | 7Y-1434 | [2] | SPACER (40X69.5X6-MM THK) |
| 7 | 093-1730 | [2] | RING-RETAINING |
| 8 | 093-1731 | [1] | RING-RETAINING |
| 9 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) |
| 10 | 094-1528 | [8] | WASHER (53X84X1-MM THK) |
| 11 | 136-2940 | [1] | BEARING |
| 12 | 096-2653 | [1] | RING-RETAINING |
| 13 | 136-2904 | [1] | BEARING |
| 14 | 114-1383 | [4] | SHAFT-PLANETARY |
| 15 | 114-1398 | [1] | GAUGE-OIL LEVEL (SWING DRIVE) |
| 16 | 114-1399 | [1] | PIPE-GAUGE |
| 17 | 114-1401 | [1] | COVER-HOUSING |
| 18 | 191-2696 | [1] | CAGE |
| 19 | 135-9044 | [2] | SEAL-LIP TYPE |
| 20 | 169-5617 | [1] | GEAR-SUN (18-TEETH) |
| 21 | 169-5618 | [3] | GEAR-PLANETARY (27-TEETH) |
| 22 | 191-2579 | [1] | CARRIER-PLANETARY |
| 23 | 171-9280 | [1] | GEAR-RING (72-TEETH) |
| 24 | 191-2694 | [1] | SHAFT-PINION |
| 25 | 191-2695 | [1] | HOUSING |
| 26 | 171-9283 | [1] | GEAR-SUN (24-TEETH) |
| 27 | 171-9375 | [1] | SEAL-O-RING |
| 28 | 191-2697 | [1] | SPACER (110X140X90.1-MM THK) |
| 29 | 509-6676 | [7] | PIN-SPRING |
| 30 | 3K-0360 | [1] | SEAL-O-RING |
| 31 | 8J-8879 | [1] | SEAL-O-RING |
| 32 | 7Y-0252 | [3] | BEARING AS-ROLLER |
| 33 | 191-2513 | [8] | BEARING AS-ROLLER |
| 34 | 453-3447 M | [8] | BOLT (M12X1.75X40-MM) |
| 35 | 451-2182 | [8] | WASHER-HARD (13.5X25.5X3-MM THK) |
| 36 | 453-2843 M | [16] | BOLT (M16X2X180-MM) |
| 37 | 451-2175 | [16] | WASHER-HARD (17.5X30X3.5-MM THK) |
| 1U-8846 BF | SEALANT-GASKET | ||
| B | USE AS REQUIRED | ||
| F | NOT SHOWN | ||
| M | METRIC PART |
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by one.
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts
Q: How long is your delivery time?
A: In stock: 1-2 working days.
Not in stock: 3-10 working days.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
