E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox

Product Details

Place of Origin: CHINA

Brand Name: TGFQ

Model Number: E307C 307C E308C 308C

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 200.00-800.00USD

Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Delivery Time: 1-3days

Payment Terms: L/C, T/T, D/P, D/A

Supply Ability: 1000 pcs / month

Get Best Price
Highlight:

307C Slewing Device

,

E308C Slewing Device

,

308C Hydraulic Swing Gearbox

Product Name:
Excavator Swing Gearbox
Model:
E307C 307C E308C 308C
Part Number:
148-4738
Quality:
High Guarantee
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Package Size:
30*30*40 CM
Product Name:
Excavator Swing Gearbox
Model:
E307C 307C E308C 308C
Part Number:
148-4738
Quality:
High Guarantee
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Package Size:
30*30*40 CM
E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox

E307C 307C Swing Gearbox Slewing Device E308C 308C Hydraulic Swing Gearbox



Product
Model:E307C 307C E308C 308C
Brand: TGFQ
Part Number: 148-4738
Part Name: Excavator swing gearbox without motor
Gearing Arrangement: Planetary
Process: Heat Treatment

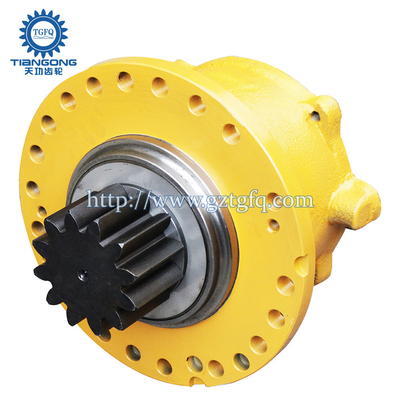

Product Photo:

E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 0E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 1E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 2

Drawing:

E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 3

Pos. Part No Qty Parts name
1 095-9805 M [4] BOLT-SOCKET HEAD (M14X2X40-MM)
2 185-0360 Y [1] MOTOR GP-SWING
3 171-9446 B [1] PLATE
4 171-9447 B [1] PLATE
5 171-9448 B [1] PLATE
6 095-1590 [1] SEAL-O-RING
7 139-7308 [2] PLUG
8 095-1575 [2] SEAL-O-RING
9 171-9449 [1] GEAR
10 171-9454 [4] BEARING
11 171-9441 [4] GEAR-PLANETARY
12 171-9440 [4] WASHER (36X58.5X2-MM THK)
13 171-9453 [4] RACE
14 171-9439 [1] CARRIER
15 171-9473 [1] HOUSING AS
16 171-9451 [1] SEAL
17 171-9438 [1] COLLAR
18 171-9456 [1] GEAR
19 171-9457 [1] RING-RETAINING
20 171-9455 M [4] SCREW (8X1.25X16-MM)
21 171-9442 [1] PLATE
22 171-9443 [1] CARRIER
23 150-0814 [3] WASHER
24 099-7076 [1] SEAL-O-RING
25 171-9445 [3] GEAR
26 150-0812 [3] BEARING AS-NEEDLE
27 150-0813 [3] RACE-INNER
  B   USE AS REQUIRED
  M   METRIC PART
  Y   SEPARATE ILLUSTRATION

SpecifiionsMain Features:

1.Completely interchangeable with original
2.Very competitive price
3.Low-noise, high efficiency, high reliability, long life
4.Small size, high power density
5.Excellent oil absorption properties.
6.For engineering machinery, maritime and boat and industrial machinery etc.
7.Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable
8.There are constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed
9.Drive shaft can withstand the axial and radial loads
10.For pass-axis structure, and for multi-loop system

Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by one.
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.
E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 4



E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 5



E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 6



OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 7

E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox 8

FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: Do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: Do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
