PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301

Name: PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301
Brand: TGFQ
SKU: PC220-7 PC240-8
Price: 500.00 USD
Availability: InStock
Rating: 4.9 (152 reviews)

Product Details

Place of Origin: CHINA

Brand Name: TGFQ

Model Number: PC220-7 PC240-8

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 500.00-1000.00USD

Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Delivery Time: 1-3days

Payment Terms: L/C, T/T, D/P, D/A

Supply Ability: 500 pcs / month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                PC220-7 Final Drive, 20Y-27-00301 Final Drive, 20Y-27-00300 Travel Motor


Product Name:	Travel Drive	Model:	PC220-7 PC240-8
Part Number:	206-27-00422 / 206-27-00423 / 206-27-00300	Spocket:	20Holes
Shaft:	11/18T	Package Size:	606055CM

Product Name:	Travel Drive
Model:	PC220-7 PC240-8
Part Number:	206-27-00422 / 206-27-00423 / 206-27-00300
Spocket:	20Holes
Shaft:	11/18T
Package Size:	606055CM

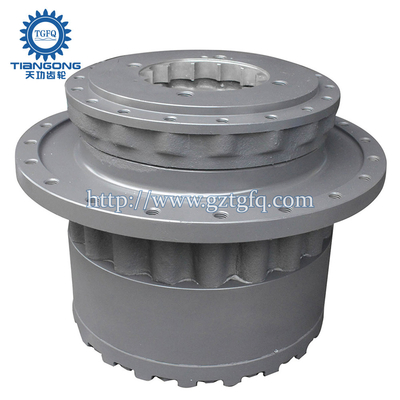

PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301

PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301

Product Parameter:

Description:	Travel Drive
Brand:	TGFQ
Material:	Iron
Weight:	280KG
Model:	PC220-7 PC240-8
Part Number:	206-27-00422 / 206-27-00423 / 206-27-00300
Package:	Exporting Wooden Box or As Required
Stock:	Send inquiry or contact sales specialist

Product Photo:

Drawing:

Pos.	Part No	Qty	Parts name	Comments
	206-27-00422	[2]	FINAL DRIVE ASSY Komatsu	394 kg.
			["SN: 60283-UP"] analogs:["2062700300", "2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700300", "20Y2700440", "20Y2700301", "20Y2700441", "2062700302", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] \|$2.
	206-27-00301	[2]	FINAL DRIVE ASSY Komatsu	394 kg.
			["SN: 60262-60282"] analogs:["2062700300", "2062700421", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700300", "20Y2700440", "20Y2700301", "20Y2700441", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] \|$3.
	206-27-00300	[2]	FINAL DRIVE ASSY Komatsu	394 kg.
			["SN: 60001-60261"] analogs:["2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700300", "20Y2700440", "20Y2700301", "20Y2700441", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] \|$4.
1.	708-8F-00192	[1]	MOTOR ASSY Komatsu OEM	99.77 kg.
			["SN: 60262-UP"] analogs:["7088F00190", "7088F00191"]
1.	708-8F-00191	[1]	MOTOR ASSY Komatsu OEM	99.77 kg.
			["SN: 60003-60261"] analogs:["7088F00190", "7088F00192"]
1.	708-8F-00190	[1]	MOTOR ASSY Komatsu OEM	99.77 kg.
			["SN: 60001-60002"] analogs:["7088F00191", "7088F00192"]
	150-27-00410	[1]	FLOATING SEAL ASSY Komatsu China	2.99 kg.
			["SN: 60283-UP"] analogs:["1502700029", "1502700330"] \|$11.
	150-27-00330	[1]	FLOATING SEAL ASSY Komatsu China	2.99 kg.
			["SN: 60001-60282"] analogs:["1502700029", "1502700410"] \|$12.
4.	22U-27-21182	[1]	HUB Komatsu	79.81 kg.
			["SN: 60001-UP"]
5.	20Y-27-22230	[2]	BEARING Komatsu	4.6 kg.
			["SN: 60001-UP"]
6.	22U-27-21220	[1]	O-RING Komatsu	0.015 kg.
			["SN: 60001-UP"]
7.	20Y-27-22261	[1]	LOCK Komatsu	5.22 kg.
			["SN: 60001-UP"]
8.	20Y-27-22270	[1]	LOCK Komatsu	0.07 kg.
			["SN: 60001-UP"]
9.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["SN: 60001-UP"] analogs:["801014093", "0101051020", "801015108"]
10.	22U-27-21170	[1]	CARRIER Komatsu OEM	20.65 kg.
			["SN: 60001-UP"] analogs:["22U2721171"]
11.	22U-27-21140	[4]	GEAR Komatsu OEM	9.28 kg.
			["SN: 60001-UP"]
12.	20Y-27-22220	[4]	BEARING Komatsu China	0.3 kg.
			["SN: 60001-UP"] analogs:["20Y2721270"]
13.	20Y-27-21250	[8]	WASHER Komatsu China	0.03 kg.
			["SN: 60001-UP"]
14.	22U-27-21230	[4]	PIN Komatsu OEM	1.543 kg.
			["SN: 60001-UP"]
15.	20Y-27-21290	[4]	PIN Komatsu OEM	0.03 kg.
			["SN: 60001-UP"]
16.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["SN: 60001-UP"]
17.	22U-27-21130	[1]	GEAR Komatsu OEM	2.01 kg.
			["SN: 60001-UP"]
18.	22U-27-21210	[1]	THRUST WASHER Komatsu	0.03 kg.
			["SN: 60001-UP"]
19.	22U-27-21153	[1]	GEAR Komatsu	37.23 kg.
			["SN: 60283-UP"] analogs:["22U2721152"]
19.	22U-27-21152	[1]	GEAR Komatsu	37.23 kg.
			["SN: 60001-60282"] analogs:["22U2721153"]
20.	22U-27-21161	[1]	CARRIER Komatsu OEM	7.43 kg.
			["SN: 60001-UP"]
21.	22U-27-21120	[3]	GEAR Komatsu China	5.34 kg.
			["SN: 60001-UP"]
22.	20Y-27-22210	[3]	BEARING Komatsu China	0.12 kg.
			["SN: 60001-UP"] analogs:["20Y2721260"]
23.	22U-27-21240	[6]	THRUST WASHER Komatsu	0.02 kg.
			["SN: 60001-UP"]
24.	20Y-27-21220	[3]	PIN Komatsu China	0.411 kg.
			["SN: 60001-UP"]
25.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["SN: 60001-UP"]
26.	22U-27-21110	[1]	SHAFT Komatsu OEM	1.5 kg.
			["SN: 60001-UP"]
27.	20Y-27-21310	[1]	WASHER Komatsu China	0.17 kg.
			["SN: 60001-UP"]
28.	22U-27-21192	[1]	COVER Komatsu	18.75 kg.
			["SN: 60001-UP"]
29.	20Y-27-22250	[1]	BUTTON Komatsu China	0.05 kg.
			["SN: 60001-UP"]
30.	20Y-27-13281	[20]	BOLT Komatsu	0.31 kg.
			["SN: 60001-UP"]
31.	01643-31645	[20]	WASHER Komatsu	0.072 kg.
			["SN: 60001-UP"] analogs:["802170005", "0164301645"]
32.	07049-01012	[2]	PLUG Komatsu	0.001 kg.
			["SN: 60001-UP"]
33.	07044-12412	[3]	PLUG Komatsu	0.09 kg.
			["SN: 60001-UP"] analogs:["0704402412", "R0704412412"]
34.	07002-02434	[3]	O-RING Komatsu China	0.01 kg.
			["SN: 60001-UP"] analogs:["0700212434", "0700213434"]
35.	20Y-27-11582	[1]	SPROCKET Komatsu China	36.2 kg.
			["SN: 60001-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
36.	20Y-27-11561	[20]	BOLT Komatsu China	0.14 kg.
			["SN: 60001-UP"]

Performance:

Final Driving Installation Precautions:

Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved. Check for leakage from all motor parts. Ensure the system is operating within the specified working temperature. Check the pressure is operating within specified range.

Troubleshooting-General Precautions:

• If you experience an abnormal operation of the Track Drive Motor, think all working circuit elements that could potentially effect the Track Drive Motor's performance.

• If deemed to disassemble the Track Drive Motor, it is critical to do so in a clean environment, to ensure no miss or broken during the reassembly process.

• When disassembly, pls note that the inner hydraulic components of the Track Drive Motor are precision manufactured and as a result must be handled with care to avoid irreversible damage.

PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301 5

PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301 6

PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301 7

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301 8

PC220-7 Final Drive Travel Motor Reduction Gearbox 20Y-27-00300 20Y-27-00301 9

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.

Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: Can I order one of our samples for testing first?
A: Of course!

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order

Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
