XKAH-01032 Excavator Travel Gearbox Hyundai R375-7 R360-7 R380-9 R360-9

TGFQ XKAH-01032 Hyundai R375-7 R360-7 R380-9 R360-9 Excavator Travel Gearbox

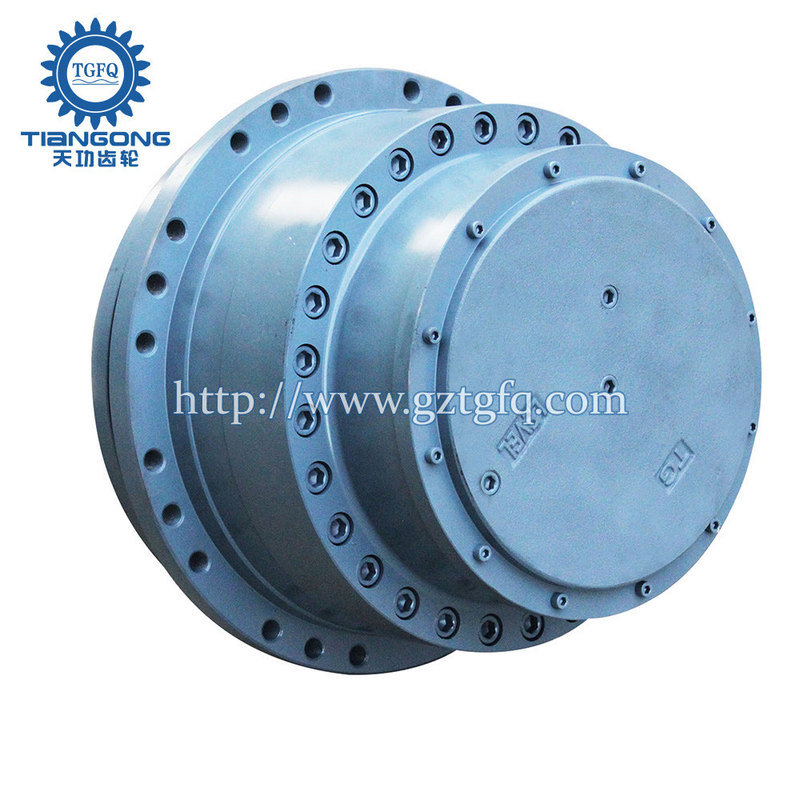

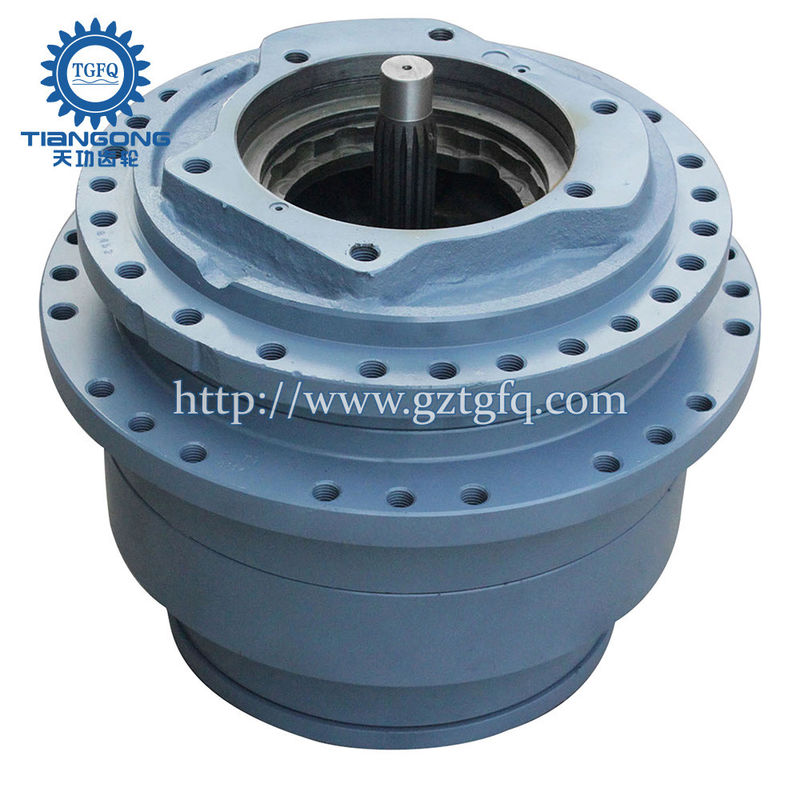

Product Photo:

Part Drawing:

Parts on group TRAVEL REDUCTION GEAR :

Pos.	Part No	Qty	Parts name
*-2.	XKAH-01449	[1]	TRAVEL REDUCTION GEAR
*-2.	XKAH-01618	[1]	TRAVEL REDUCTION GEAR
1	XKAH-01441	[1]	GEAR-RING
2	XKAH-01442	[1]	HOUSING
2	XKAH-01612	[1]	HOUSING
4	XKAH-01443	[1]	COVER-SIDE
4	XKAH-01608	[1]	COVER-SIDE
S005.	XKAH-01444	[1]	CARRIER NO.1
S006.	XKAH-01445	[1]	CARRIER NO.2,B
9	XKAH-01446	[1]	SUN GEAR NO.1
10	XKAH-01447	[1]	SUN GEAR NO.2
11	XKAH-01448	[1]	SUN GEAR NO.3
S012.	XKAH-00995	[3]	GEAR 1-PLANETARY
S013.	XKAH-00996	[3]	GEAR 2-PLANETARY
14	XKAH-00997	[4]	GEAR 3-PLANETARY
S016.	XKAH-00998	[3]	PIN 2
17	XKAH-00999	[4]	PIN 3
S018.	XKAH-01000	[3]	PLATE E-SIDE
S019.	XKAH-01001	[6]	PLATE A-SIDE
20	XKAH-01002	[8]	PLATE F-SIDE
S021.	XKAH-01003	[3]	CAGE-NEEDLE
S022.	XKAH-01004	[3]	CAGE-NEEDLE
23	XKAH-01005	[4]	CAGE-NEEDLE
S024.	XKAH-01262	[3]	RING-INNER
25	XKAH-01007	[4]	BUSHING-FLOATING
26	XKAH-01008	[2]	RING-THRUST 60
S027.	XKAH-01009	[1]	RING-THRUST
29	XKAH-01010	[28]	BOLT-SOCKET
30	XKAH-00210	[12]	BOLT-SOCKET
30	XKAH-01609	[12]	BOLT-SOCKET
32	XKAH-00032	[3]	PLUG-RO
33	XKAH-01450	[2]	BEARING-ANGULAR
K034.	XKAH-01451	[1]	SEAL-FLOATING
35	XKAH-01013	[1]	SHIM
S036.	XKAH-01014	[3]	PIN-SPRING
S037.	XKAH-01015	[4]	RING-SNAP
S044.	XKAH-00143	[3]	RING-SNAP
45	XKAH-01017	[1]	CLIP
46	XKAH-01018	[1]	CLIP-W
N047.	XKAH-01452	[1]	NUTRING
N051.	XKAH-01437	[1]	NAME PLATE
51	XKAH-01613	[1]	NAME PLATE
N052.	XKAH-00986	[2]	SCREW-RIVET
52	XKAH-00116	[2]	SCREW-RIVET
K081.	XKAH-01453	[1]	O-RING
K082.	XKAH-01454	[1]	O-RING
K083.	XKAH-00035	[3]	O-RING
53	XKAH-01022	[1]	WASHER
54	XKAH-01455	[3]	SCREW-SET
55	XKAH-01439	[4]	STOPPER-NUTRING
55	XKAH-01610	[4]	STOPPER-NUTRING
56	XKAH-01440	[8]	BOLT-SOCKET
S011.	XKAH-01024	[1]	SUB ASSY 1-CARRIER
S012.	XKAH-01025	[1]	SUB ASSY 2-CARRIER
K013.	XKAH-01026	[1]	SUB ASSY-SEAL KIT



Description:

1. Quality Assurance and Direct Factory Price.

2. Durable ,Genuine new and Long Service Life.
3.Sufficient Supply and Timely Delivery after payment.
4.Excellent workmanship and 100% real product photography.

5.You can send a message directly to send the model you need, and I will give you a reasonable price.

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts

Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.

Q: can I order one of our samples for testing first?
A: Of course!

Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order

Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
