TGFQ Hyundai Excavator Travel Gearbox For R215-9 DH225-9 Final Drive

Brand Name:	TGFQ
Model Number:	R215-9 DH225-9
MOQ:	1
Price:	500.00-1000.00USD
Packaging Details:	NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Hyundai Excavator Travel Gearbox

Part Number:

XKAH-01577 / XKAH-01095 / K9007404

Holes:

30/30

Place Of Origin:

Guangdong, China

Applicable Industries:

Machinery Repair Shops, Energy & Mining

Means Of Transpor:

By Sea, By Air Or By Express

Outer Packing:

Wooden Case

Inner Packing:

Wrap With Shrink Film

Supply Ability:

1000 pcs / month

Highlight:

R215-9 Excavator Travel Gearbox

DH225-9 Excavator Travel Gearbox

R215-9 final drive gearbox

Product Description

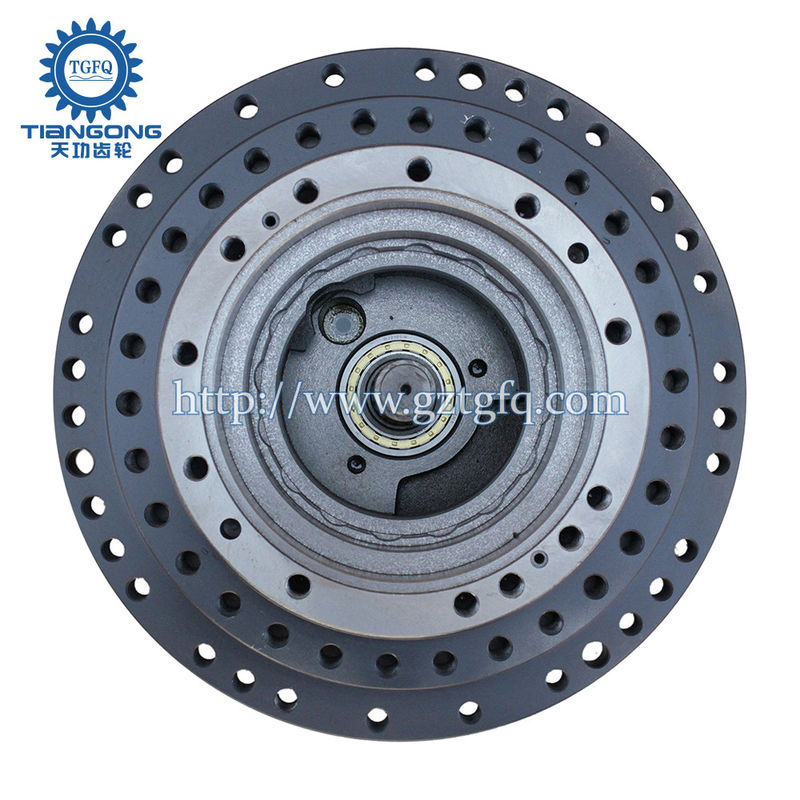

TGFQ Hyundai Excavator Travel Gearbox For R215-9 DH225-9 Final Drive

TGFQ Gearbox designed for Hyundai R215-9 and DH225-9 excavator final drive applications, providing reliable travel reduction performance.

Product Specifications

Product Name	Travel Gearbox
Place of Origin	China (Mainland)
Model	R215-9 DH225-9
Part Number	XKAH-01577 / XKAH-01095
MOQ	1 PCS
Payment Terms	L/C, T/T, D/P, D/A
Delivery Time	Within 1-3 days after receiving payment
Transport Methods	By Sea, By Air or By Express

Compatible Equipment

9-SERIES CRAWLER EXCAVATOR: R250LC9, R250LC9A, R260LC9S, RB260LC9S Hyundai

Travel Reduction Gear Components

Position	Part No	Quantity	Parts Name
*	@	[1]	TRAVEL MOTOR ASSY
*-1	XKAH-01095	[1]	REDUCTION PART
*-1	XKAH-01577	[1]	TRAVEL REDUCTION GEAR
*-11	XKAH-01421	[1]	CARRIER ASSY 1
107	XKAH-01110	[3]	BEARING(R)-SHAFT
117	XKAH-01109	[3]	GEAR(R)-PLANETARY
118	XKAH-01003	[3]	CAGE-NEEDLE
122	XKAH-01114	[3]	SPRING-PIN
131	XKAH-01111	[6]	WASHER(R)-THRUST
134	XKAH-01285	[1]	CARRIER 1
*-12	XKAH-01422	[1]	CARRIER ASSY 2
103	XKAH-01282	[1]	CARRIER 2
108	XKAH-01102	[4]	GEAR-PLANET 1
109	XKAH-01101	[8]	WASHER(F)-THRUST
110	XKAH-01113	[4]	PIN-SPRING
111	XKAH-01103	[4]	BEARING-NEEDLE
112	XKAH-01104	[4]	BUSHING-FLOATING
113	XKAH-01105	[4]	BEARING(F)-SHAFT
*-13	XKAH-01420	[3]	PLUG ASSY-RO,PF1/2
K38	XKAH-00035	[3]	O-RING
128	XKAH-00032	[3]	PLUG-PF
101	XKAH-01281	[1]	SPINDLE
K102	XKAH-00916	[2]	SEAL-FLOATING
105	XKAH-01097	[1]	HUB
105	XKAH-01578	[1]	HUB
106	XKAH-00348	[1]	PIECE-DISTANCE
114	XKAH-01107	[1]	GEAR-SUN
115	XKAH-01108	[1]	RING-SNAP
121	XKAH-01116	[1]	GEAR-DRIVE
123	XKAH-01117	[1]	COVER
124	XKAH-00755	[16]	BOLT-SOCKET
125	XKAH-01099	[2]	BEARING-A/BALL
K126	XKAH-00028	[1]	O-RING
129	XKAH-01283	[1]	RING-SEAL
K130	XKAH-00335	[1]	O-RING
132	XKAH-01284	[1]	WASHER-THRUST(M)
133	XKAH-00344	[1]	PLATE-THRUST
136	XKAH-01286	[2]	PLATE-SHIM
*-2	@	[1]	CONTROL PART ASSY
*-3	@	[1]	TRAVEL MOTOR UNIT
*-4	@	[1]	RELIEF VALVE ASSY
K	XKAH-01279	[1]	SEAL KIT
N	@	[1]	NOT SUPPLIED PARTS

Product Images

Our Warehouse Capacity

We operate more than 4000 square meters of three-dimensional warehouse and over 2000 square meters of outdoor warehouse facilities. This ensures we maintain sufficient inventory levels and can respond rapidly to customer requirements. Fast delivery is our competitive advantage.

Frequently Asked Questions

What products and services do you provide?

We specialize in providing digging final drive and swing drive motors, reducer gearboxes, and their component parts for excavators.

How long is the warranty period?

We offer a 3-6 month warranty period. During this time, we provide maintenance spare parts free of charge for any warranty claims.

Can I order a sample for testing?

Yes, we welcome sample orders for product testing and evaluation.

How do I place an order?

Simply provide us with the model and quantity you require. We will issue a proforma invoice, and upon payment receipt, we will prepare your order. Preparation time varies based on order specifics.

Do you have your own manufacturing facility?

Yes, we operate our own factory with 22 years of specialized experience in the excavator gear industry.
