EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734
  • name
  • name

EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734

Brand Name: TGFQ
Model Number: EC240 Old Type
MOQ: 1
Price: 500.00-4000.00USD
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Product Name:
Final Drive Assembly
Part Number:
SA7117-34050 / VOE14528735 / VOE14528734
Part Model:
EC240 Old
Outer Packing:
Wooden Case
S/N:
10001--12640 / 12641-15000 / 8277649
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Supply Ability:
1000 pcs / month
Highlight:

14528734 Final Drive Assembly

,

14528735 Final Drive Assembly

,

14528734 Vol-vo Final Drive

Product Description
EC240 Volvo Final Drive Assembly VOE 14528735 VOE 14528734
Product Overview

EC240 Old Type Volvo Final Drive Assembly VOE 14528735 VOE 14528734 - Travel Gearbox designed for Volvo reduction gearbox applications.

Product Specifications
Product Name Travel Gearbox
Place of Origin China (Mainland)
Model EC240 Old Type
Part Number SA7117-34050 / VOE14528735 / VOE14528734
Weight 278 KG
Package Size 54*54*57 CM
Delivery Time Within 1-3 days after receiving payment
Means of Transport By Sea, By Air or By Express
Serial Numbers S/N: 10001-12640 (12641-15000) 8277649, 8277650, 8277651, 8279629, 8279630, 8279631

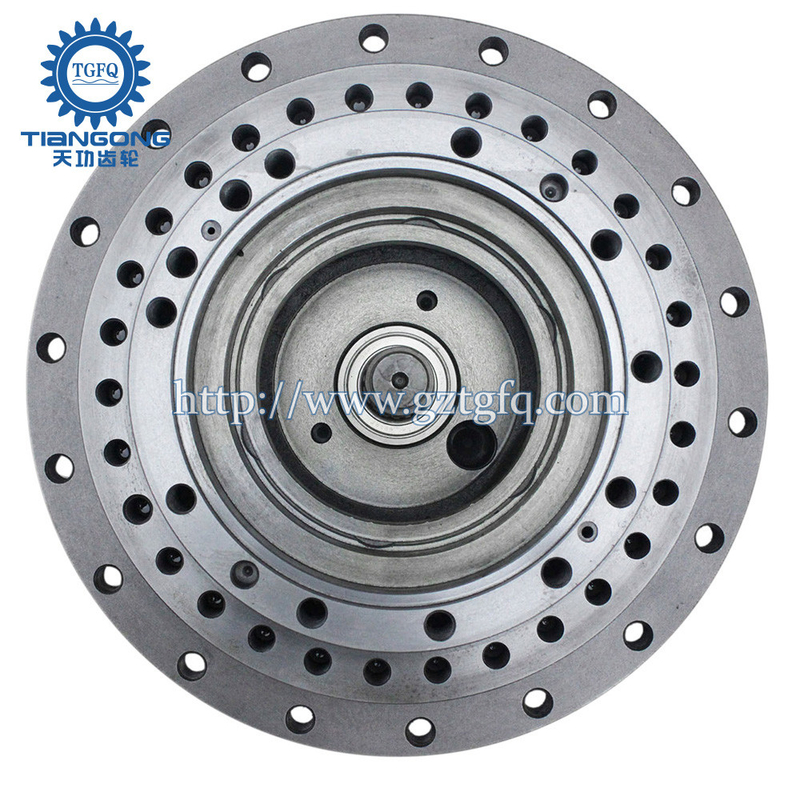

EC240 Old Type Final Drive Images
EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 0 EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 1 EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 2 EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 3
Technical Drawing
EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 4
Parts Breakdown
Pos. Part No Qty Parts Name
SA7117-34050 [1] Travel Gearbox
1 SA7117-34100 [1] Housing
2 SA7117-34110 [2] Bearing
3 SA7117-34120 [1] Ring gear
4 SA9016-21818 [20] Hex. socket screw
5 SA7117-34130 [1] Seal
6 SA9415-43042 [3] Plug
7 SA7117-34190 [1] Retainer
8 VOE9011-11206 [12] Screw
9 SA7117-34200 [1] Planet carrier
10 SA7117-34210 [1] Carrier
11 SA7117-34220 [4] Planetary gear
12 SA7117-34230 [8] Needle bearing
13 SA7117-34240 [8] Washer
14 SA7117-34250 [4] Pin
15 VOE13951991 [4] Spring pin
16 SA7117-34260 [1] Carrier
17 SA7117-34270 [1] Carrier
18 SA1036-00310 [1] Thrust ring
19 SA7117-34280 [1] Gear
20 SA1036-00300 [1] Ring
21 SA7117-34290 [1] Retaining ring
22 SA7117-34300 [3] Planetary gear
23 SA7117-34310 [3] Needle bearing
24 VOE14556491 [6] Washer
25 SA7117-34330 [3] Pin
26 SA9325-06012 [3] Spring pin
27 SA7117-34340 [1] Planet carrier
28 SA7117-34350 [1] Planet carrier
29 SA7117-34370 [3] Pin
30 SA9325-06012 [3] Spring pin
31 SA7117-34360 [1] Gear
32 SA7117-34440 [1] Retaining ring
33 SA7117-34420 [3] Planetary gear
34 SA7117-34380 [3] Needle bearing
35 SA7117-34390 [3] Washer
36 SA7117-34400 [3] Washer
37 SA9541-01034 [3] Retaining ring
38 SA1036-00290 [2] Thrust ring
39 SA7117-34430 [1] Gear
40 SA7117-34410 [1] Cover
41 VOE9213-10000 [16] Spring Washer
42 VOE993025 [16] Hexagon screw
43 SA7117-34140 [1] Shim
44 SA7117-34150 [1] Shim
45 SA7117-34160 [1] Shim
46 SA7117-34170 [1] Shim
47 SA1036-00450 [1] Shim
48 SA1036-00460 [1] Shim
EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 5 EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 6 EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 7
Our Warehouse & Inventory

We maintain over 4000 square meters of three-dimensional warehouse space and more than 2000 square meters of outdoor warehouse facilities. This ensures we have sufficient inventory to respond quickly to customer needs, with fast delivery being our key advantage.

EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 8 EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 9
Frequently Asked Questions
What products do you provide?
We specialize in digging final drive and swing drive motors, reducer gearboxes, and their component parts.
How long is the warranty period?
We offer a 3-6 month warranty period, during which we provide maintenance spare parts free of charge.
Can I order a sample for testing?
Yes, we welcome sample orders for testing and evaluation.
How do I place an order?
Simply provide us with the model and quantity you need, and we will issue a proforma invoice. After payment is received, we will prepare your order with preparation time depending on order content.
Do you have your own factory?
Yes, we operate our own factory with 22 years of production experience in the excavation gear industry.
