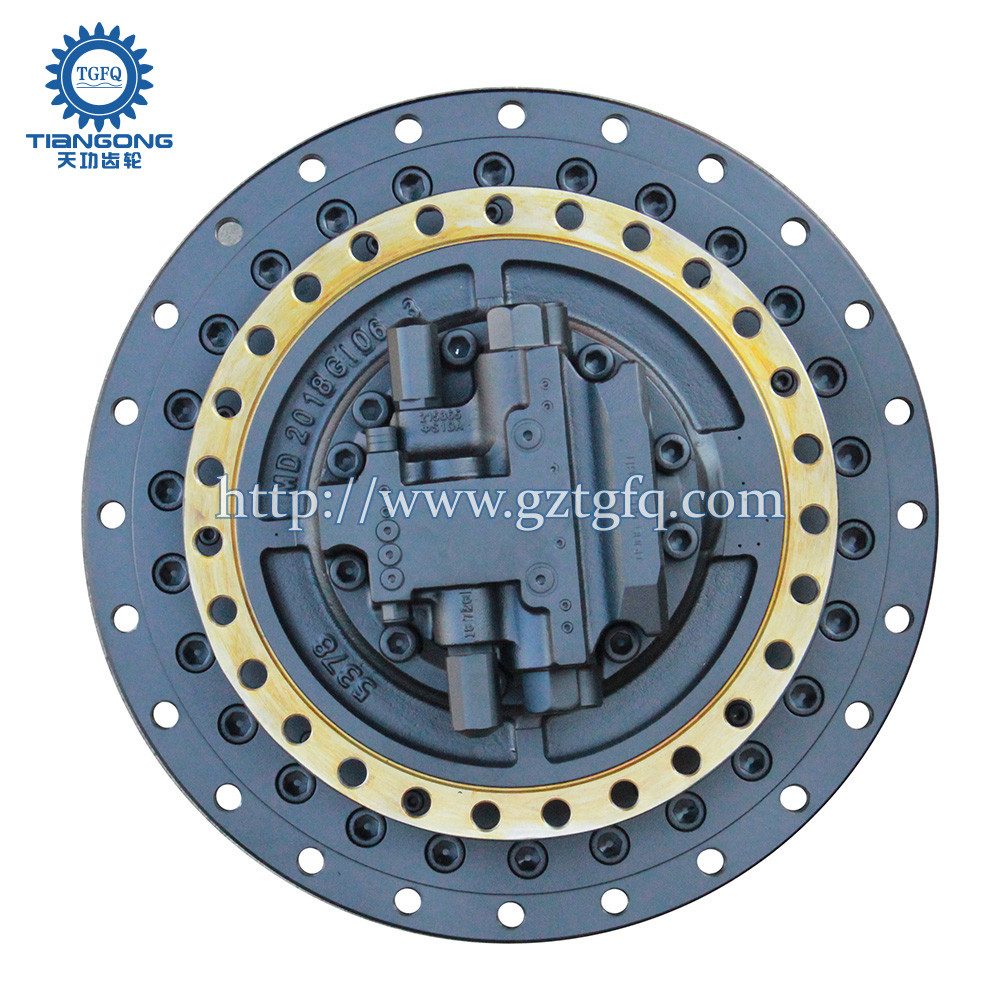

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
  • name
  • name
  • name
  • name

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4

Brand Name: TGFQ
Model Number: SK460-8
MOQ: 1
Price: 1000.00-5000.00usd
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Product Name:
Excavator Final Drive
Part Model:
SK460-8
Part Number:
LS15V00022F4
Outer Packing:
Wooden Case
Brand:
TGFQ
Applicable Industries:
Machinery Repair Shops, Energy & Mining
Supply Ability:
50 pcs / month
Highlight:

SK460 Mini Excavator Final Drive

,

SK460-8 Excavator Final Drive

,

LS15V00022F4

Product Description
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
SK460-8 Kobelco Excavator Final Drive Assy TGFQ LS15V00022F4

LS15V00022F4 SK460-8 Travel motor Apply For Kobelco Excavator Final Drive Assy

Product Specifications
Model: SK460-8
Category: Excavator Final Drive
Brand: TGFQ
Origin: China
Part No.: GM85VA
Package Size: 74*74*80 CM
Transport: By Sea, Air or Express
Payment: L/C, T/T, D/P, D/A
Product Images
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 0 SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 1 SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 2 SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 3 SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 4
Hydraulic Motor Assembly (35.353.03[01])
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 5
Parts List - SK485LC-9 ACERA MARK 9 EXCAVATOR
Pos. Part No Qty Parts Name Comments
.. LS15V00022F4 [1] HYDRAULIC MOTOR KOB Assembly, Incl 1 - 43
1 NSS [1] NOT SOLD SEPARAT CON Body
2 NSS [2] NOT SOLD SEPARAT CON Plug
3 NSS [1] NOT SOLD SEPARAT CON Oil ring
4 2441U1040S19 [1] COVER KOB Ring, Retaining
5 LC15V00023S035 [1] BALL KOB
6 LS15V00022S008 [1] SHAFT KOB
7 LS15V00022S009 [1] BEARING KOB
8 LC15V00023S040 [1] BLOCK KOB
9 2441U1030S29 [9] SPRING KOB
10 LC15V00023S042 [1] HOLDER KOB Holder
11 LC15V00021S024 [1] BALL JOINT KOB
12 LC15V00021S004 [1] RETAINER KOB
13 2441U1040S7 [5] PLATE KOB
14 2441U1040S5 [4] PLATE KOB
15 2441U1040S6 [1] PISTON KOB Piston
16 LS15V00004S052 [1] O-RING KOB
17 LS15V00004S053 [1] O-RING KOB
18 LS15V00022S023 [1] COVER KOB
19 2436U1427S25 [14] PLUG KOB
20 2436U1317S13 [2] PLUG KOB
21 ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
22 YN15V00017S038 [5] PLUG KOB
23 ZD12P00800 [5] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
24 YN15V00017S017 [3] CHECK VALVE KOB
25 YN15V00017S026 [3] SPRING KOB
26 YN15V00037S376 [2] ORIFICE SM Superseded by part number: GN15V00010S024
27 ZD12P01250 [1] O-RING KOB ID 12.3mm X OD 14.7mm
28 GN15V00010S025 [1] RESTRICTOR KOB Orifice
29 ZD12P01500 [1] O-RING KOB
30 2441U1040S40 [1] O-RING KOB
31 2441U1040S32 [1] ROLLER BEARING KOB
32 LS15V00014S033 [2] SHIM KOB Superseded by part number: 2441U1040S34
33 2441U1040S35 [1] PIN KOB
34 LS15V00014S008 [1] PLATE KOB
35 YN15V00003S030 [14] SPRING KOB
36 ZS23C18050 [10] SCREW,Hex Socket Head, M18 x 50mm KOB Cap
37 2441U1040S10 [1] COUPLING JOINT KOB
38 ZR26X04000 [1] RING KOB Snap
39 NSS [2] NOT SOLD SEPARAT CON Spool
40 NSS [1] NOT SOLD SEPARAT CON Plate
41 NSS [1] NOT SOLD SEPARAT CON Piston
42 NSS [1] NOT SOLD SEPARAT CON Piston Seal
43 NSS [9] NOT SOLD SEPARAT CON Piston Assembly
Additional Images
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 6 SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 7 SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 8
Company Capabilities

We operate from more than 4000 square meters of three-dimensional warehouse and over 2000 square meters of outdoor warehouse facilities. This extensive infrastructure ensures we maintain sufficient inventory levels and can respond rapidly to customer requirements. Fast delivery service is one of our key competitive advantages.

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 9 SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4 10
Frequently Asked Questions
What products and services do you provide?
We specialize in providing excavator final drive and swing drive motors, reducer gearboxes, and their component parts.
How long is the warranty period?
We offer a 6 to 12 month warranty period. During this time, we provide maintenance spare parts free of charge for any warranty claims.
Can I order a sample for testing?
Yes, we welcome sample orders for product testing and evaluation.
How do I place an order?
Simply provide us with the model and quantity you require. We will issue a proforma invoice for your review. Upon payment confirmation, we will prepare your order. Preparation time varies depending on order complexity and current inventory.
Do you operate your own manufacturing facility?
Yes, we own and operate our own factory with 22 years of specialized experience in the excavator gear manufacturing industry.
