| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TGFQ |
| Model Number: | EC360C/EC330B EC350B |
| Minimum Order Quantity: | 1 |
| Price: | 1000.00-5000.00usd |
| Packaging Details: | NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type |
| Delivery Time: | 2-4days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 50 pcs / month |
| Brand: | TGFQ | Product Name: | Travel Motor Assy |
|---|---|---|---|
| Outer Packing: | Wooden Case | Delivery Port: | Huangpu Port |
| Delivery Time: | Depends On Order | Applicable Industries: | Machinery Repair Shops, Energy & Mining |
| Apply For: | EC360C/EC330B EC350B | Part Number: | VOE14566400/VOE14723003 |

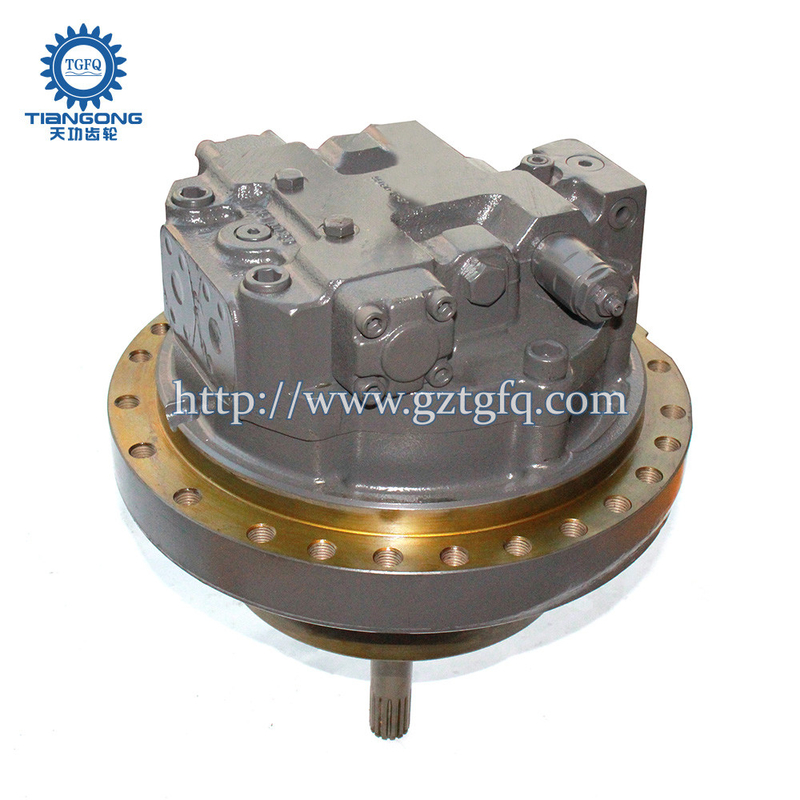

Vol-vo EC360C/EC330B EC350B Travel motor VOE14566400/VOE14723003 Excavator
Travel Device Assy Apply for Vol-vo
| VOE14606699 Travel motor | |||
| 1 | VOE14552647 | [1] | Casing |
| 2 | VOE14565337 | [1] | Rod |
| 3 | VOE14565336 | [1] | Pin |
| 4 | VOE983507 | [1] | O-ring |
| 5 | VOE983501 | [1] | O-ring |
| 6 | VOE14528296 | [1] | Screw |
| 7 | VOE997410 | [1] | Hexagon nut |
| 8 | VOE14551525 | [1] | Pin |
| 9 | VOE990585 | [2] | O-ring |
| 10 | SA7242-10540 | [2] | Cover |
| 11 | SA7242-10750 | [1] | Screw |
| 12 | VOE983497 | [1] | O-ring |
| 13 | SA9415-31021 | [7] | Plug |
| 14 | VOE993320 | [7] | O-ring |
| 15 | VOE14568912 | [2] | Relief valve |
| 16 | SA9016-22019 | [2] | Hex. socket screw |
| 17 | VOE14560637 | [9] | Plug |
| 18 | SA9016-11209 | [8] | Hex. socket screw |
| 19 | [2] | Plug | |
| 20 | VOE993322 | [2] | O-ring |
| 21 | VOE984229 | [4] | Hex. socket screw |
| 22 | SA7242-10710 | [2] | Clamping plate |
| 23 | SA7242-10720 | [2] | Guard |
| 24 | VOE14880998 | [2] | Ball |
| 25 | VOE14880006 | [1] | Name plate |
| 26 | SA1010-11360 | [2] | Screw |
| 27 | SA7242-10520 | [2] | Washer |
| 28 | SA7242-10530 | [2] | Spring |
| 29 | SA7242-11560 | [1] | Spring |
| 30 | VOE14507000 | [1] | Spacer |
| 31 | SA7242-11290 | [1] | Plug |
| 32 | VOE983509 | [1] | O-ring |
| 33 | VOE14509997 | [1] | Spool |
| 34 | VOE14506994 | [1] | Spring |
| 35 | VOE14506995 | [1] | Plug |
| 36 | VOE983505 | [1] | O-ring |
| 37 | VOE14579610 | Control plunger | |
| 38 | VOE14565331 | [1] | Shaft |
| 39 | VOE14640025 | [1] | Roller bearing |
| 40 | VOE14506955 | [1] | Bearing |
| 41 | VOE914472 | [1] | Snap ring |
| 42 | [1] | Casing | |
| 43 | SA7242-10590 | [1] | Seal |
| 44 | SA8320-01810 | [1] | Retaining ring |
| 45 | VOE14506958 | [2] | Pivot |
| 46 | VOE14506959 | [1] | Piston |
| 47 | VOE14551526 | [5] | Pin |
| 48 | VOE14506982 | [3] | Plate |
| 49 | VOE14506984 | [2] | Plate |
| 50 | VOE14565332 | [1] | Piston |
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
