| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TGFQ |
| Model Number: | PC450-7/PC400-6 |
| Minimum Order Quantity: | 1 |
| Price: | 1000.00-5000.00usd |
| Packaging Details: | NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type |
| Delivery Time: | 2-4days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 50 pcs / month |
| Brand: | TGFQ | Product Name: | Travel Motor Assy |
|---|---|---|---|
| Outer Packing: | Wooden Case | Delivery Port: | Huangpu Port |
| Delivery Time: | Depends On Order | Applicable Industries: | Machinery Repair Shops, Energy & Mining |
| Apply For: | PC450-7/PC400-6 | Part Number: | 706-8J-01012 |

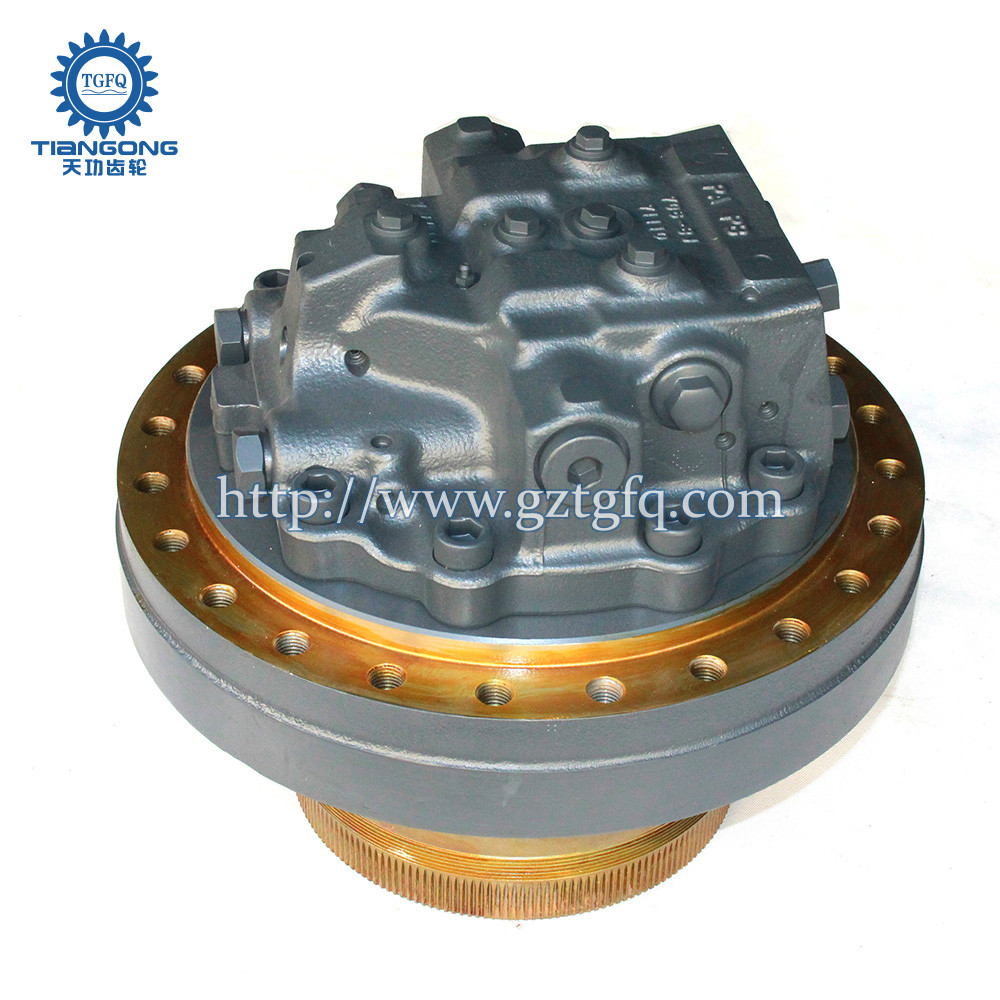

PC450-7 /pPC400-6 Final device 208-27-00415 Excavator
Travel Device Assy Apply for komastu
| 1 | 208-27-00252 | FINAL DRIVE ASS'Y | 1 |
| 1 | 208-27-00251 | FINAL DRIVE ASS'Y | 1 |
| 1 | 208-27-00250 | FINAL DRIVE ASS'Y | 1 |
| 1 | (706-8J-01020) | MOTOR ASS'Y | 1 |
| 2 | 17M-27-00121 | FLOATING SEAL ASS'Y | 1 |
| 2 | Ring | 2 | |
| 3 | O-ring | 2 | |
| 4 | 208-27-71151 | Gear | 1 |
| 4 | 208-27-71150 | Gear | 1 |
| 5 | 208-27-71210 | Bearing | 2 |
| 6 | 208-27-71310 | COLLAR | 1 |
| 7 | 208-27-71270 | Lock | 1 |
| 8 | 208-27-71260 | Lock | 1 |
| 9 | 01010-81020 | BOLT,(FOR MONO LEVER STEERING) | 2 |
| 10 | 208-27-71170 | Carrier | 1 |
| 11 | 208-27-71140 | Gear | 4 |
| 12 | 208-27-71710 | Bearing | 4 |
| 13 | 21M-27-11260 | THRUST WASHER | 8 |
| 14 | 208-27-71250 | Pin | 4 |
| 15 | 20Y-27-21290 | Pin | 4 |
| 16 | 207-27-52270 | Spacer | 1 |
| 17 | 208-27-71130 | Gear | 1 |
| 18 | 208-27-71290 | Spacer | 1 |
| 19 | 208-27-71160 | Carrier | 1 |
| 20 | 208-27-71120 | Gear | 3 |
| 21 | 208-27-71720 | Bearing | 3 |
| 22 | 20Y-27-21250 | WASHER,THRUST | 6 |
| 23 | 21M-27-11240 | Pin | 3 |
| 24 | 20Y-27-21280 | Pin | 3 |
| 25 | 208-27-71112 | Shaft | 1 |
| 26 | 20Y-27-11250 | Spacer | 1 |
| 27 | 04260-01905 | Ball | 1 |
| 28 | 208-27-71183 | Cover | 1 |
| 28 | 208-27-71182 | Cover | 1 |
| 29 | 01010-81235 | BOLT, MOUNT GROUND DRIVEN STEERING PUMP | 16 |
| 30 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 16 |
| 31 | 07049-01215 | PLUG,(FOR ROPS SWEEP) (WITHOUT CAB) | 2 |
| 32 | 20Y-27-31190 | Plug | 3 |
| 33 | 07002-52434 | O-RING,(-50 DEG. SPEC.) | 3 |
| 34 | 208-27-61210 | SPROCKET | 1 |
| 35 | 207-27-51311 | Bolt | 26 |
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
